SPORTS CAR,COUPE
107.024 => 450 SLC USA
M: 117982, 117985
GA: 722004
LG: 765701

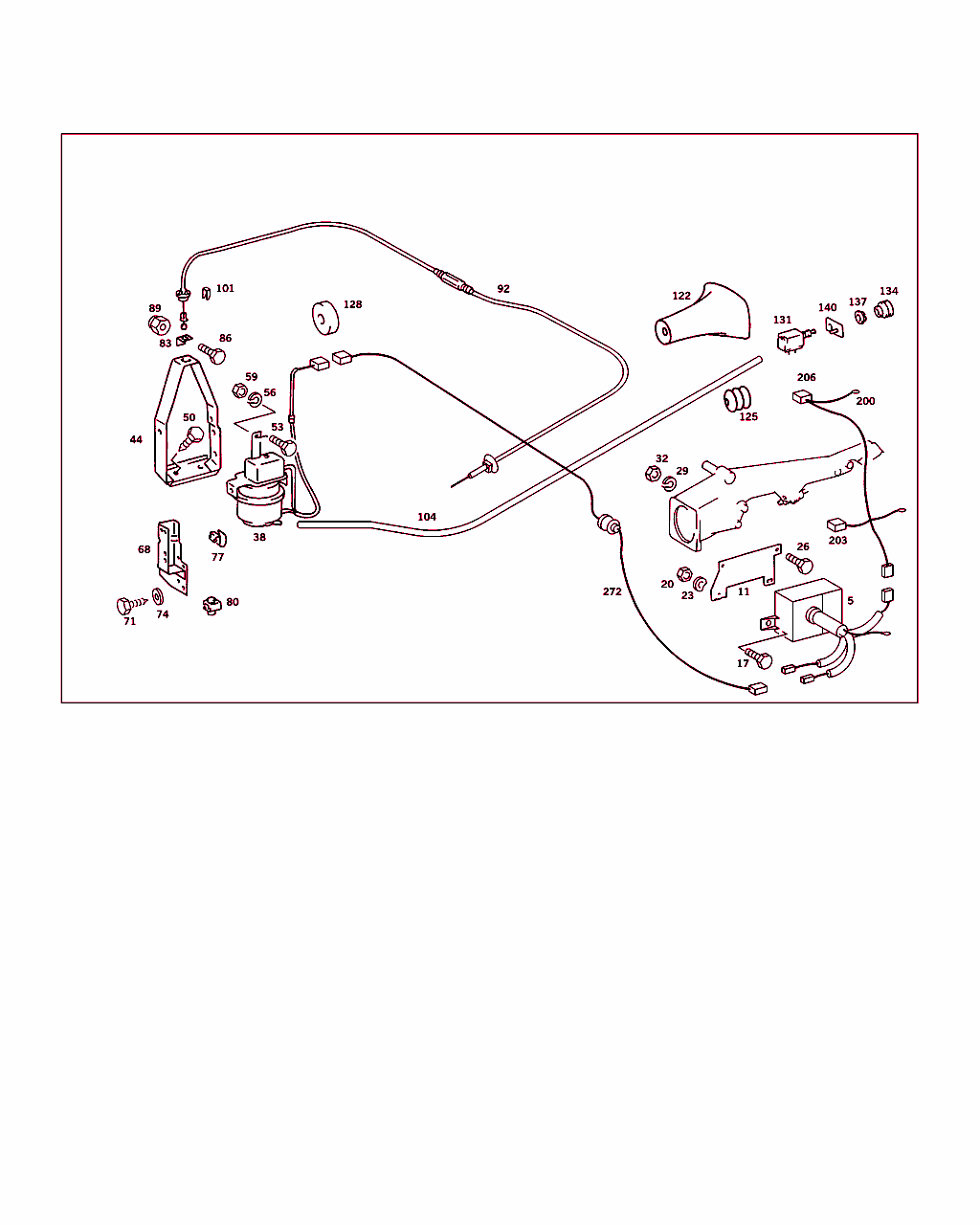

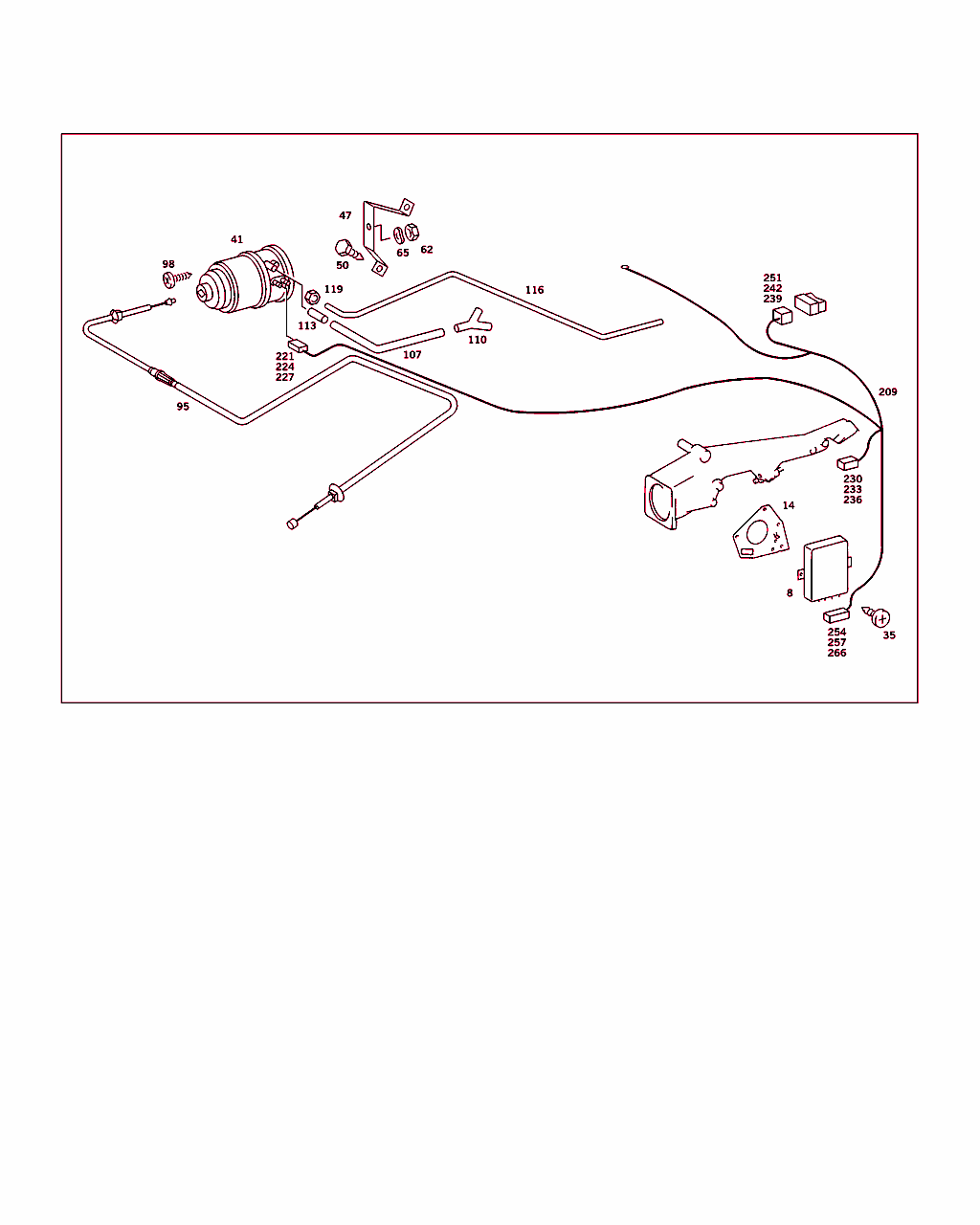

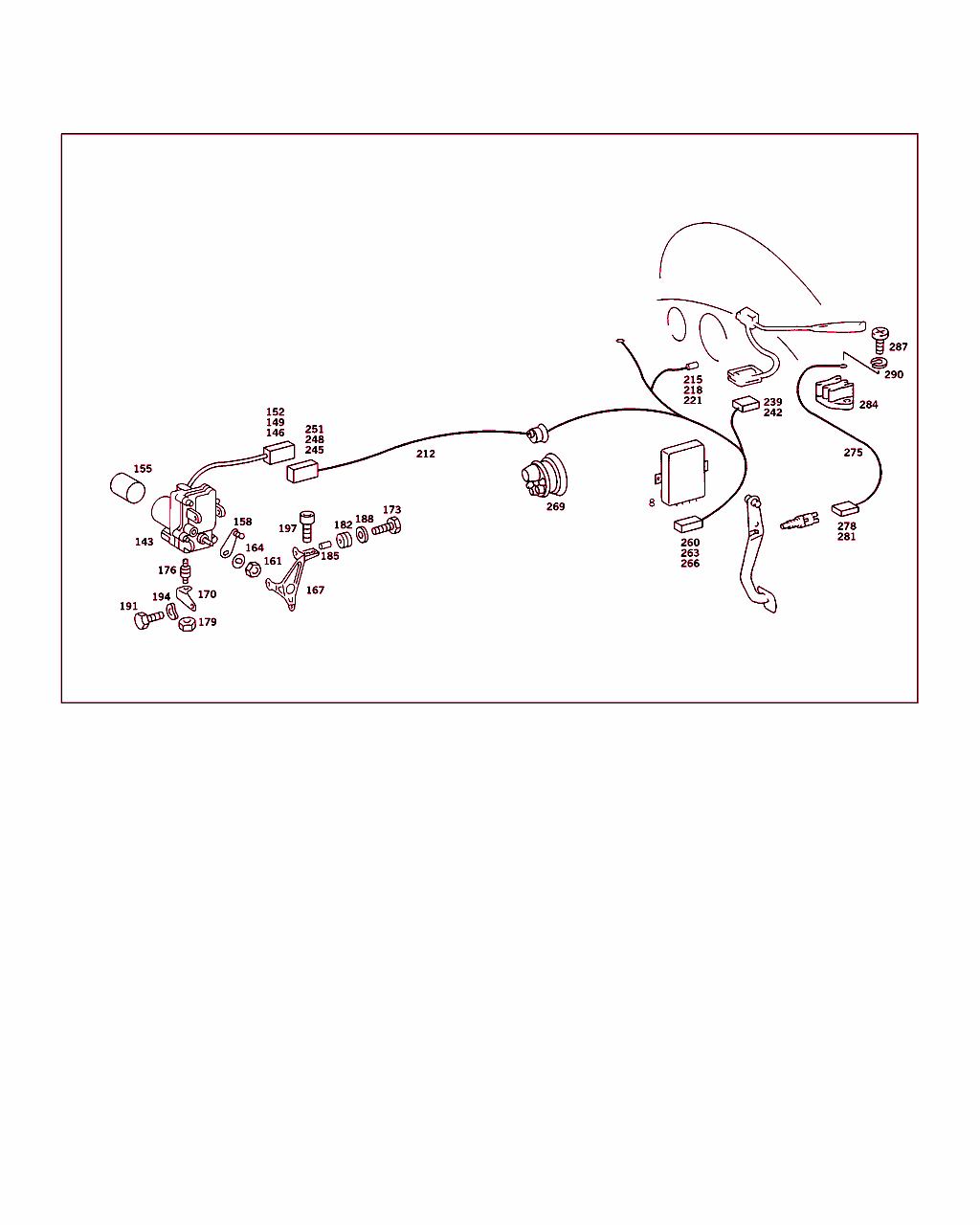

Schema

B54750000084.930129

[image]

B54750000085.930129

[image]

B54750000086.930812

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
5 A 116 545 00 32
コントロール・ユニット
コントロール・ユニット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
8 A 005 545 12 32
コントロールユニット
TEMPOMAT

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
11 A 116 545 24 40
ホルダー

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
14 A 116 545 40 40
ホルダー

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
17 N 000933 004067
ボルト
ブラケットに取り付けるコントロール・ユニット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
20 N 000934 004004
ナット
ブラケットに取り付けるコントロール・ユニット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
23 N 000137 004202
スプリングワッシャ
ブラケットに取り付けるコントロール・ユニット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
26 N 000933 006127
ボルト
ペダル・アッセンブリのブラケット

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
29 N 912004 006102
ロック・ワッシャ
ペダル・アッセンブリのブラケット

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
32 N 000934 006013
ナット

これに変更 N 304032 006008 		-
32 N 304032 006008
ヘキサゴン・ナット
ペダル・アッセンブリのブラケット

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
35 N 007981 004348
鉄板ビス
ブラケットに取り付けるコントロール・ユニット

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		002
38 A 000 545 58 32
スロットル・アクチュエータ
コントロール・アクチュエータ

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
41 A 001 545 07 32
コントロールユニット
コントロール・アクチュエータ

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
44 A 108 540 18 73
ホルダー

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
47 A 107 542 12 40
ホルダー

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
50 N 007976 006203
鉄板ビス
クロージング・プレート/コントロール・アクチュエータ・ホルダ

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
50 N 007976 006203
鉄板ビス
サイド・メンバに取り付けるブラケット 		001
53 N 000933 006122
ボルト

これに変更 N 304017 006034 		-
53 N 304017 006034
6角ボルト
コントロール・ケーブル・クリップ用

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
56 N 912004 006102
ロック・ワッシャ
コントロール・ケーブル・クリップ用

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
59 N 000934 006013
ナット

これに変更 N 304032 006008 		-
59 N 304032 006008
ヘキサゴン・ナット
コントロール・ケーブル・クリップ用

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
62 N 000934 008013
ナット
ブラケット/コントロール・アクチュエータ 		001
65 N 000137 008204
スプリングワッシャ
ブラケット/コントロール・アクチュエータ 		001
68 A 116 545 27 40
ホルダー

ﾌｯﾄﾉｰﾄ解説
[062]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 007732
044 021001
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
71 N 007976 004215
鉄板ビス
サイド・メンバに取り付けるブラケット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
74 N 009021 005202
ウインドウ

これに変更 N 009021 005205 		-
74 N 009021 005205
ウインドウ
サイド・メンバに取り付けるブラケット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
77 A 000 988 18 78
クリップ

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
80 A 002 988 01 78
クリップ

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
83 A 109 545 20 40
ホルダー

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
86 N 000933 003008
ボルト

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
89 N 913002 003000
ナット

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
92 A 107 300 01 30
ケーブル

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
95 A 107 300 08 30
ワイヤ

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
98 N 007981 004219
鉄板ビス

これに変更 N 000000 000453 		-
98 N 000000 000453
鉄板ビス
コントロール・アクチュエータ/オペレーティング・ケーブル 		003
101 A 123 301 01 73
クリップ
コントロール・ケーブル

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
104 A 107 540 02 59
ホース

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
104 A 000 997 57 52
ホース

ﾌｯﾄﾉｰﾄ解説
[062]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 007732
044 021001
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
107 A 000 997 96 52
ホース
1250 MM

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[404]
ORDER BY THE METER
 		001
110 A 117 078 01 45
分岐ノズル

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
113 A 007 997 61 82
ホース
30 MM

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[404]
ORDER BY THE METER
 		001
116 A 107 997 33 82
ホース
1400 MM

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
119 A 000 990 71 54
ナット

ﾌｯﾄﾉｰﾄ解説
[069]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
024 011191 CALIFORNIA,ALSO INSTALLED ON
  009743,  011144,  011150.
044 028300 FEDERAL,ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA,ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
122 A 123 267 00 97
スリーブ

ﾌｯﾄﾉｰﾄ解説
[062]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 007732
044 021001
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
125 A 107 545 02 94
ラバー・パッド

ﾌｯﾄﾉｰﾄ解説
[062]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 007732
044 021001
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
128 A 115 466 00 82
ラバー・リング

ﾌｯﾄﾉｰﾄ解説
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		002
131 A 001 545 26 11
スイッチ

ﾌｯﾄﾉｰﾄ解説
[044]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,EXCEPT FOR
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
131 A 001 545 19 11
スイッチ

ﾌｯﾄﾉｰﾄ解説
[043]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA,ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
134 A 107 820 09 92
ボタン

ﾌｯﾄﾉｰﾄ解説
[044]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,EXCEPT FOR
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
137 A 107 545 01 72
ナット

ﾌｯﾄﾉｰﾄ解説
[044]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,EXCEPT FOR
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
140 A 108 584 10 21
表示ラベル

ﾌｯﾄﾉｰﾄ解説
[044]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,EXCEPT FOR
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
200 A 107 540 28 09
ケーブル・ハーネス
クルーズ・コントロール

ﾌｯﾄﾉｰﾄ解説
[044]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,EXCEPT FOR
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
200 A 107 540 58 09
ケーブル・ハーネス
クルーズ・コントロール

ﾌｯﾄﾉｰﾄ解説
[043]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA,ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021626,  021707,  021736,
  021739,  021741,  021746.
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
 		001
203 A 000 821 06 25
プラグ
2 ピン

ﾌｯﾄﾉｰﾄ解説
[083]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 015078 FEDERAL,EXCEPT FOR
  014594,  014612,  014627,  014705,  014847,  015007,  015059,  015064,  015068.
024 015052 CALIFORNIA,EXCEPT FOR
  012227,  014677,  014683,  014983,  015006,  015037.
044 035423 FEDERAL,EXCEPT FOR
  034326,  034384,  034421,  034428,  034503,  034505,  034521,  034523,  034552,  034556,  034560,  035095,  035097,  035100,
  035113,  035116,  035123,  035188,  035200,  035203,  035204,  035212,  035215,  035217,  035219,  035220,  035244,  035246,
  035292,  035299,  035301,  035303,  035310,  035311,  035320,  035330,  035342,  035354,  035360,  035369,  035373,  035374,
  035382.
044 035346 CALIFORNIA,EXCEPT FOR
  031482,  034307,  034409,  034496,  034548,  034567,  035224,  035329,  035341,  035345.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
206 A 000 821 04 26
クラッチ
4 ピン

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
209 A 107 540 80 09
ケーブル・ハーネス
クルーズ・コントロール

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		001
221 A 001 545 44 26
コンタクト・ソケット
TO 008 545 08 28,008 545 20 28

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		004
224 A 008 545 08 28
ハウジング
2 ピン

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		002
227 A 008 545 11 28
カバー
TO 008 545 08 28

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		002
230 A 000 821 19 26
プラグ
2 ピン

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		001
233 A 000 821 24 25
中間プラグ
TO 000 821 19 26

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		001
236 A 010 545 52 28
ソケット・スリーブ
TO 000 821 19 26

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		002
239 A 006 545 80 28
コンタクトサポート
クルーズ・コントロール・スイッチ、6 ピン

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		001
242 A 009 545 30 28
アッパハウジング
TO 006 545 80 28

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		001
251 A 003 545 26 26
コンタクト・ソケット
TO 006 545 80 28,006 545 81 28

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		005
254 A 010 545 00 28
ハウジング
クルーズ・コントロール用コントロール・ユニット、 12 ピン

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		001
257 A 010 545 01 28
カバー
TO 010 545 00 28

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		001
266 A 002 545 99 26
コンタクト・ソケット
TO 010 545 00 28,010 545 96 28

ﾌｯﾄﾉｰﾄ解説
[127]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058372 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[830]
FROM MODEL YEAR'83
 		010
272 A 107 540 35 09
ケーブル・ハーネス

ﾌｯﾄﾉｰﾄ解説
[067]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 011199 FEDERAL,EXCEPT FOR
  011079,  011129,  011139,  011155,  011162.
024 011190 CALIFORNIA EXCEPT FOR
  009743,  011144,  011150.
044 028299 FEDERAL,EXCEPT FOR
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028292 CALIFORNIA,EXCEPT FOR
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[086]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 002323 ALSO INSTALLED ON
  002278,  002305,  002306,  002310.
044 012882 ALSO INSTALLED ON
  012853,  012856,  012858-  012862,  012865.
 		001
