SPORTS CAR,COUPE
107.024 => 450 SLC USA
M: 117982, 117985
GA: 722004
LG: 765701

Schema

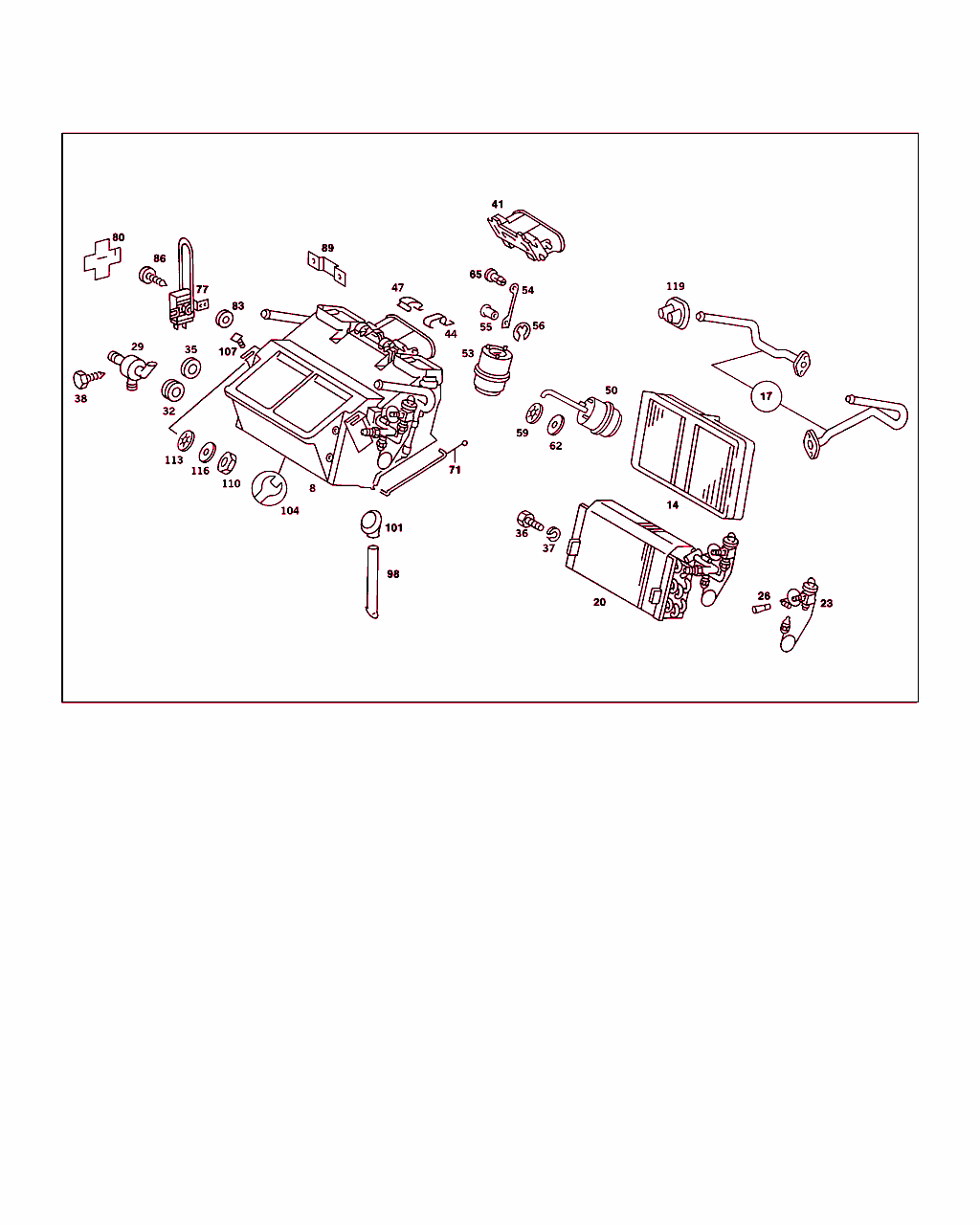

B83045000095.950928

[image]

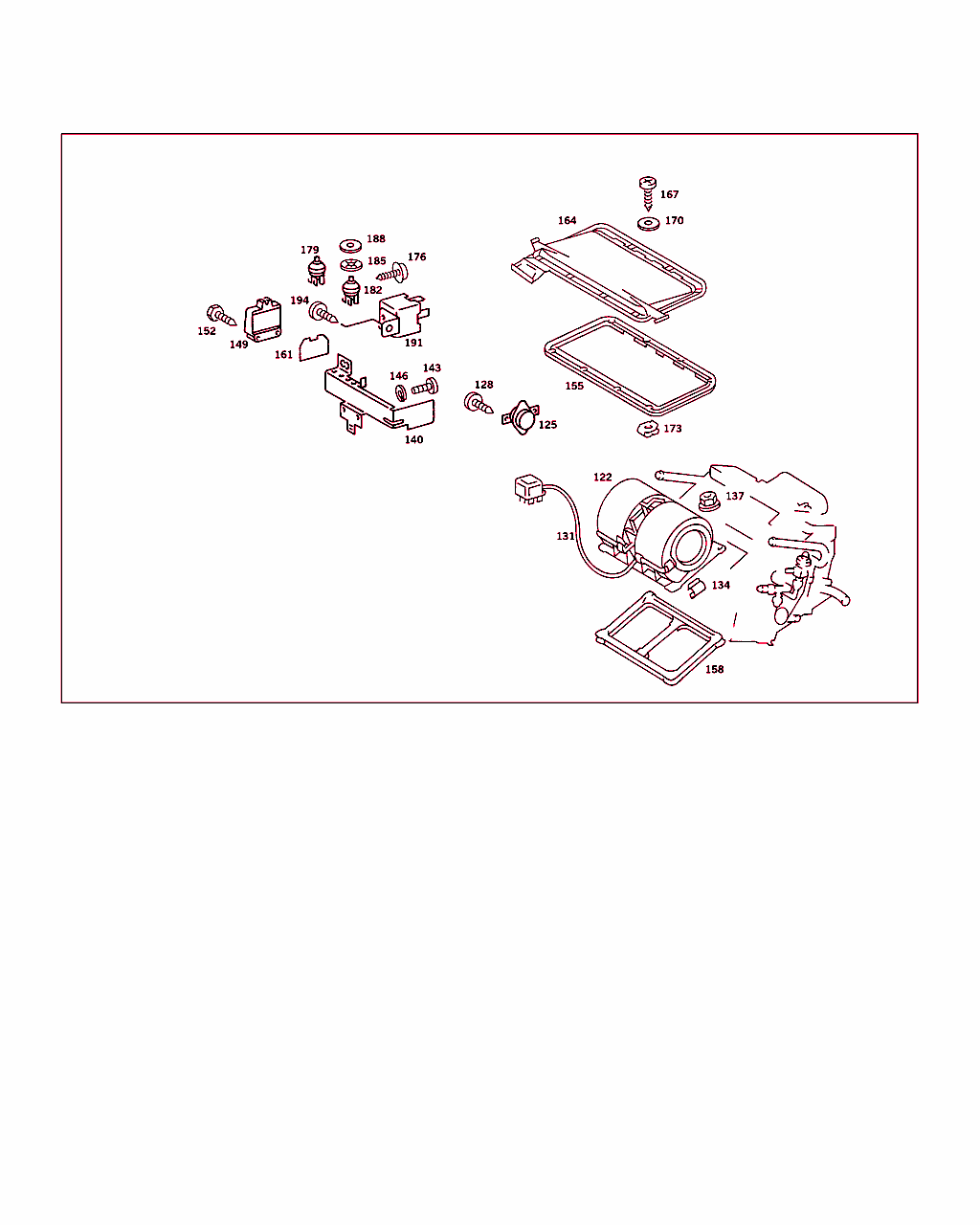

B83045000096.930129

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
8 A 107 830 09 62
ヒータ・ユニット

これに変更 A 107 830 17 62 		-
8 A 107 830 17 62
ヒータ・ユニット
エアコン

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
8 A 107 830 10 62
ヒータ・ユニット

これに変更 A 107 830 19 62

ﾌｯﾄﾉｰﾄ解説
[226]
EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS:
024 022842
044 048902
 		001
8 A 107 830 19 62
ヒータ・ユニット
エアコン

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
14 A 107 835 02 01
熱交換器

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
14 A 107 835 03 01
熱交換器

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
17 A 000 830 67 15
パイプ
熱交換器パイプ 		001
20 A 116 830 00 58
エバポレータ

これに変更 A 107 830 00 58 		-
20 A 107 830 00 58
エバポレータ

これに変更 A 000 830 48 58 		-
20 A 000 830 48 58
エバポレータ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
23 A 115 835 00 72
バルブ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
26 A 108 835 02 47
ストレーナ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
29 A 116 805 00 77
ノズル

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
32 A 115 997 06 81
グロメット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[249]
ｼｬｼﾅﾝﾊﾞNo.以前: 045 020183
 		001
36 N 000933 005031
ボルト
エバポレータ / ヒータ・ハウジング

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
37 N 000127 005204
スプリング・ワッシャ
エバポレータ / ヒータ・ハウジング

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
38 N 007976 004212
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
41 A 107 830 03 25
コネクティング・ピース
外気

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
41 A 107 830 04 25
コネクティング・ピース
外気

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
44 A 000 835 13 34
スプリング 012
47 A 000 835 07 34
テンション・スプリング 004
50 A 107 800 25 75
エレメント
デフロスタ・ノズル・フラップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[227]
UP TO CHASSIS
024 022842
044 048902
 		001
50 A 107 800 26 75
エレメント
フレッシュ・エア・フラップ

ﾌｯﾄﾉｰﾄ解説
[228]
FROM CHASSIS
024 022843
044 048903
 		001
53 A 000 800 32 75
エレメント
デフロスタ・ノズル・フラップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
54 A 107 805 06 74
シフト・ロッド 001
55 N 007338 004205
リベット 001
56 N 006799 003202
ロック・ワッシャ 001
59 A 000 994 96 45
ヒューズ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		006
62 A 116 987 05 41
ウインドウ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		006
65 A 000 990 26 92
スプレッド・リベット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
71 A 001 987 56 46
ウェザ・ストリップ

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
 		001
77 A 002 821 24 51
スイッチ

これに変更 A 002 820 84 10 		-
77 A 002 820 84 10
スイッチ

これに変更 A 003 820 23 10 		-
77 A 003 820 23 10
スイッチ

これに変更 A 003 820 24 10 		-
77 A 003 820 24 10
温度スイッチ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[409]
TO BE ADAPTED DURING ASSEMBLY
 		001
80 A 116 821 00 76
ダンパ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[841]
UP TO END OF MODEL YEAR'84
 		001
80 A 126 821 00 76
ダンパ

ﾌｯﾄﾉｰﾄ解説
[850]
FROM MODEL YEAR'85
 		001
83 A 000 987 13 41
ラバー・リング

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
86 N 007981 003214
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
89 A 107 835 04 14
ホルダー

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
98 A 116 835 01 97
ホース
ウォータ・ドレン

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
98 A 116 835 01 97
ホース
CONDENSED WATER DRAIN IN AIR DUCT, CENTER

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
98 A 116 835 01 97
ホース
ウォータ・ドレン
103.5 MM

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
101 A 107 997 02 81
グロメット
ヒータ・ハウジング・ウォータ・ドレン

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
101 A 107 997 02 81
グロメット
ウォータ・ドレン・ホース

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
104 A 116 586 00 83
リペア・キット
INTERMEDIATE LEVER 		002
107 A 000 990 52 33
ボルト
ヒータ・ハウジング / センタ・ピース 		002
110 N 000934 006007
ナット
ヒータ・ハウジング / センタ・ピース 		002
113 N 009021 006103
ウインドウ

これに変更 N 009021 006208 		-
113 N 009021 006208
ウインドウ
ヒータ・ハウジング / センタ・ピース 		002
116 N 006797 006145
歯付きワッシャ
ヒータ・ハウジング / センタ・ピース 		002
122 A 107 835 00 07
ブロワ

これに変更 A 107 830 01 08 		-
122 A 107 830 00 08
ブロワ

これに変更 A 107 830 01 08 		-
122 A 107 830 01 08
ブロワ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
122 A 107 830 02 08
ブロワ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
125 A 002 821 18 51
スイッチ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
128 N 007981 003335
鉄板ビス

これに変更 N 007981 003203 		-
128 N 007981 003203
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		002
131 A 107 820 80 15
電気ケーブル
ブロワ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
134 A 000 835 13 34
スプリング 010
137 N 913011 006000
ナット 004
140 A 107 835 08 14
ホルダー

これに変更 A 107 835 14 14

ﾌｯﾄﾉｰﾄ解説
[232]
EXHAUST STOCK OF OLD PART NUMBERS FIRST FROM CHASSIS SEE FOOTN.60 UP TO CHASSIS 024 031060; 025 000171; 044 064180; 045 000155
 		-
140 A 107 835 14 14
ホルダー
バキューム・ライン

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		001
143 N 007985 004149
ボルト

これに変更 N 000000 001933 		-
143 N 000000 001933
6角丸頭ボルト 002
146 N 000127 004203
ロック・ワッシャ

これに変更 N 912004 004102 		-
146 N 912004 004102
ロック・ワッシャ 002
149 A 000 835 00 57
アンプ

これに変更 A 000 835 01 57 		-
149 A 000 835 01 57
アンプ

これに変更 A 000 835 00 57 		-
149 A 000 835 00 57
アンプ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
152 N 007976 004227
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		002
155 A 107 835 00 23
シーリング・フレーム 001
158 A 107 835 01 23
シーリング・フレーム
ブロワ 		001
161 A 116 835 00 19
カバー

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
164 A 107 830 03 52
カバー
ブロワ・カバー 		001
167 N 007981 004219
鉄板ビス

これに変更 N 000000 000453 		-
167 N 000000 000453
鉄板ビス 008
170 N 009021 004108
ウインドウ

これに変更 N 009021 004207 		-
170 N 009021 004207
ウインドウ 008
173 A 000 994 56 45
ナット 008
176 N 914032 004300
ワッシャ付きボルト

これに変更 N 000000 000548 		-
176 N 000000 000548
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		004
179 A 000 800 02 73
スイッチ

これに変更 A 000 800 05 73 		-
179 A 000 800 05 73
スイッチ
黄色

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		003
179 A 000 800 05 73
スイッチ
黄色

♦ 以下から選択できます A 000 800 02 73

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		003
182 A 000 800 03 73
スイッチ

これに変更 A 000 800 06 73 		-
182 A 000 800 06 73
スイッチ
緑色

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
182 A 000 800 06 73
スイッチ
緑色

♦ 以下から選択できます A 000 800 03 73

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		001
185 A 000 994 89 45
ピン・ロック

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		004
188 A 123 987 04 41
ウインドウ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		004
191 A 000 821 02 47
リレー

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		004
194 N 007981 004318
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
194 N 007981 004325
鉄板ビス 001
