一覧

SPORTS CAR,COUPE
107.024 => 450 SLC USA
M: 117982, 117985
GA: 722004
LG: 765701

Schema

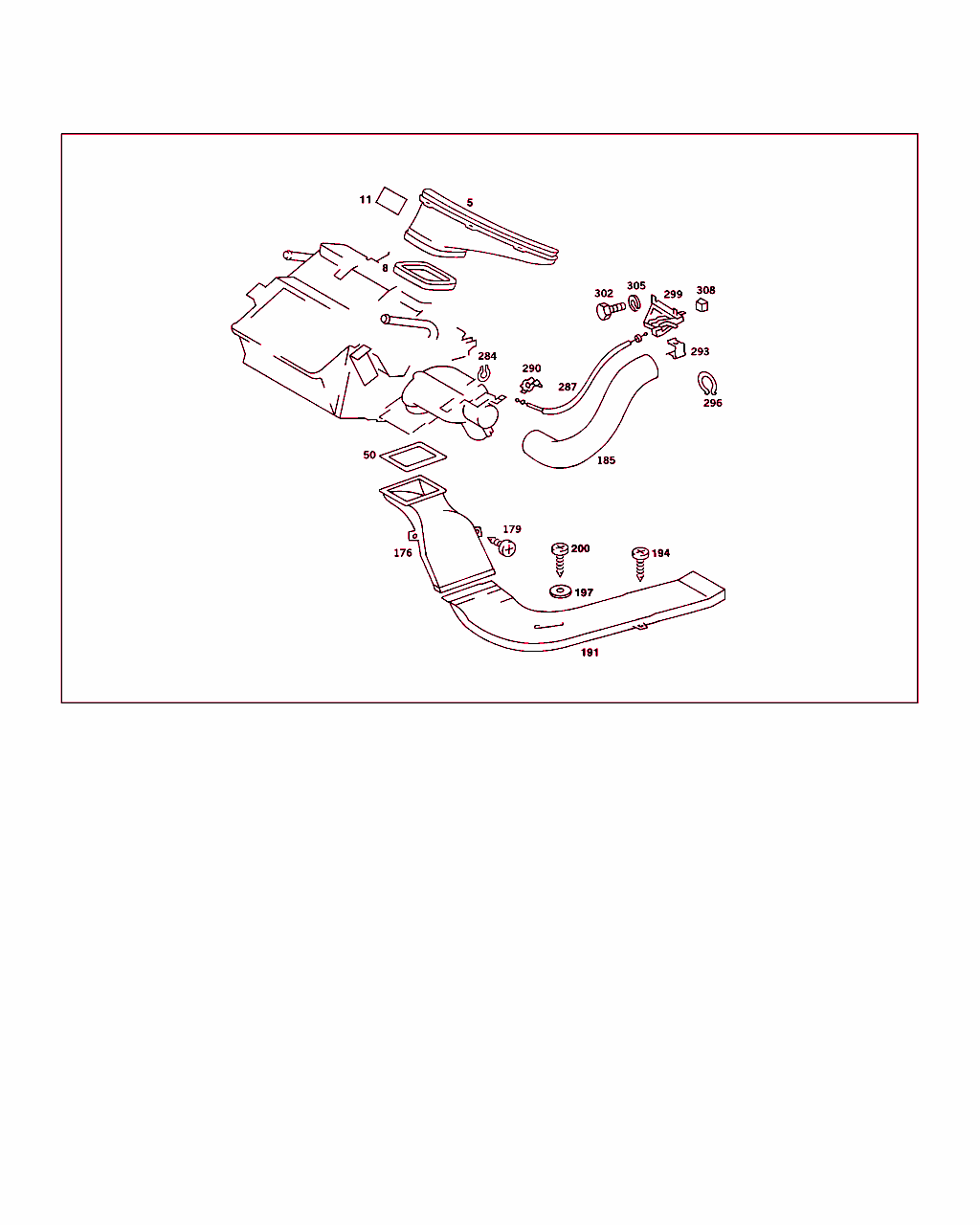

B83165000094.930129

[image]

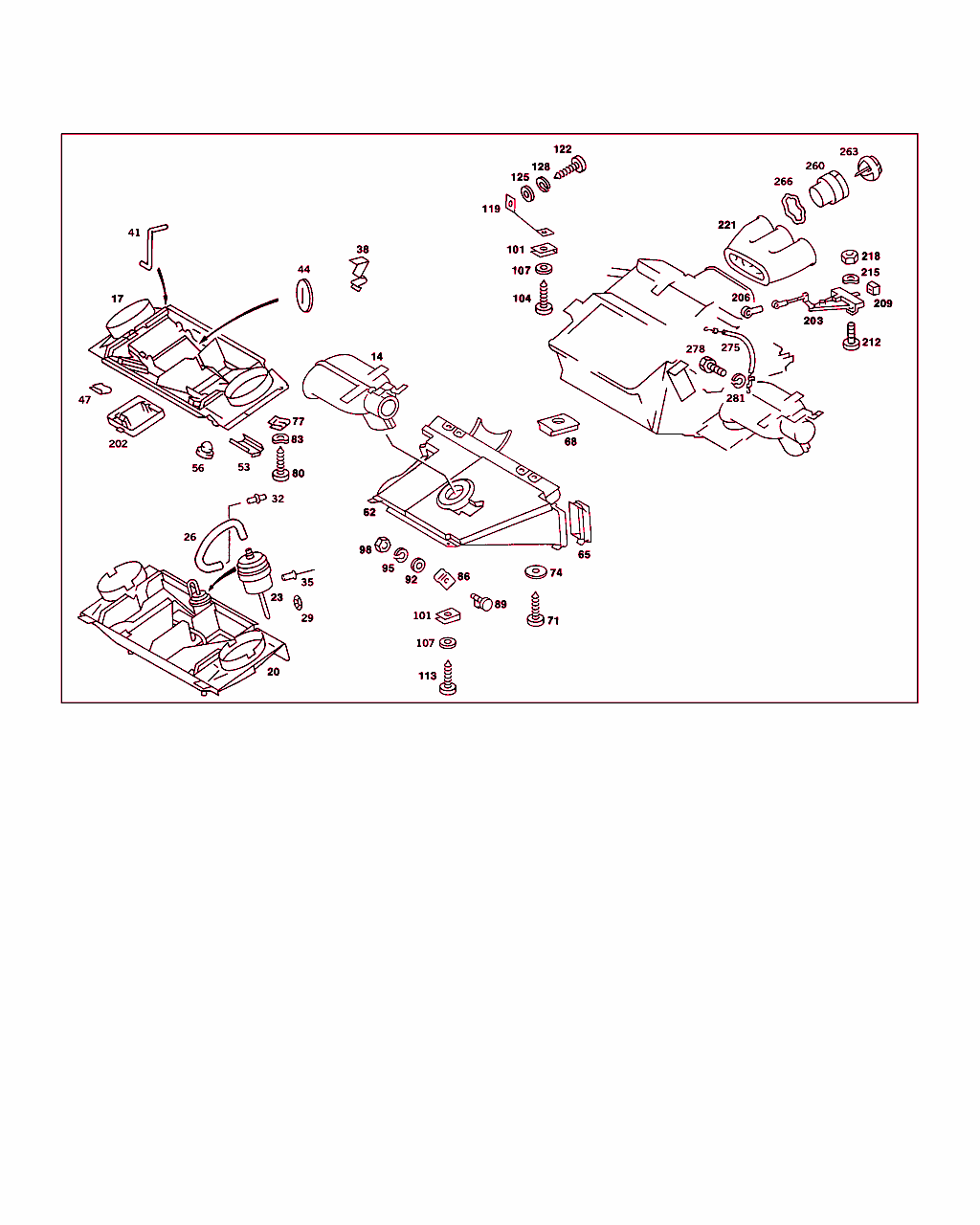

B83165000095.930129

[image]

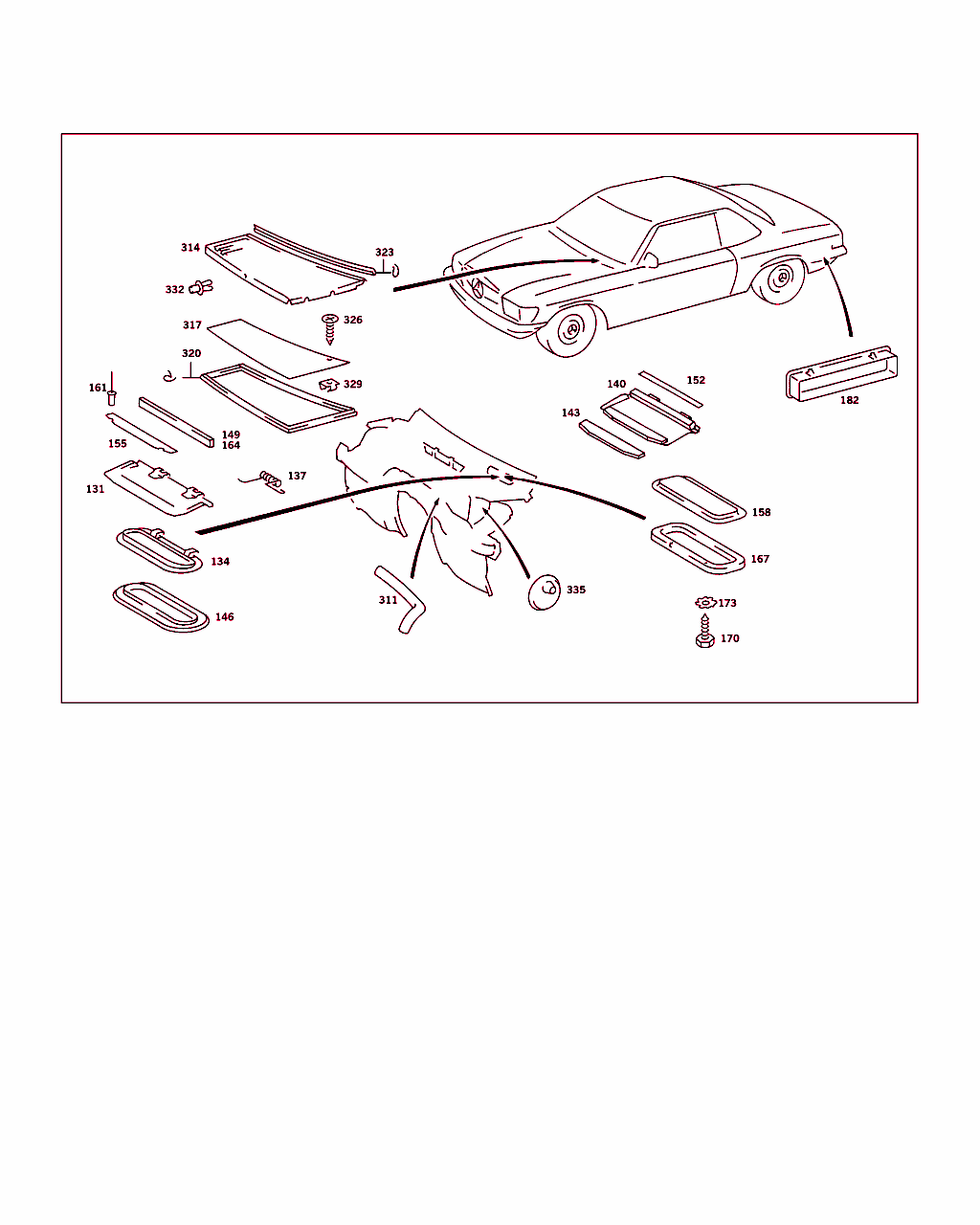

B83165000096.930129

[image]

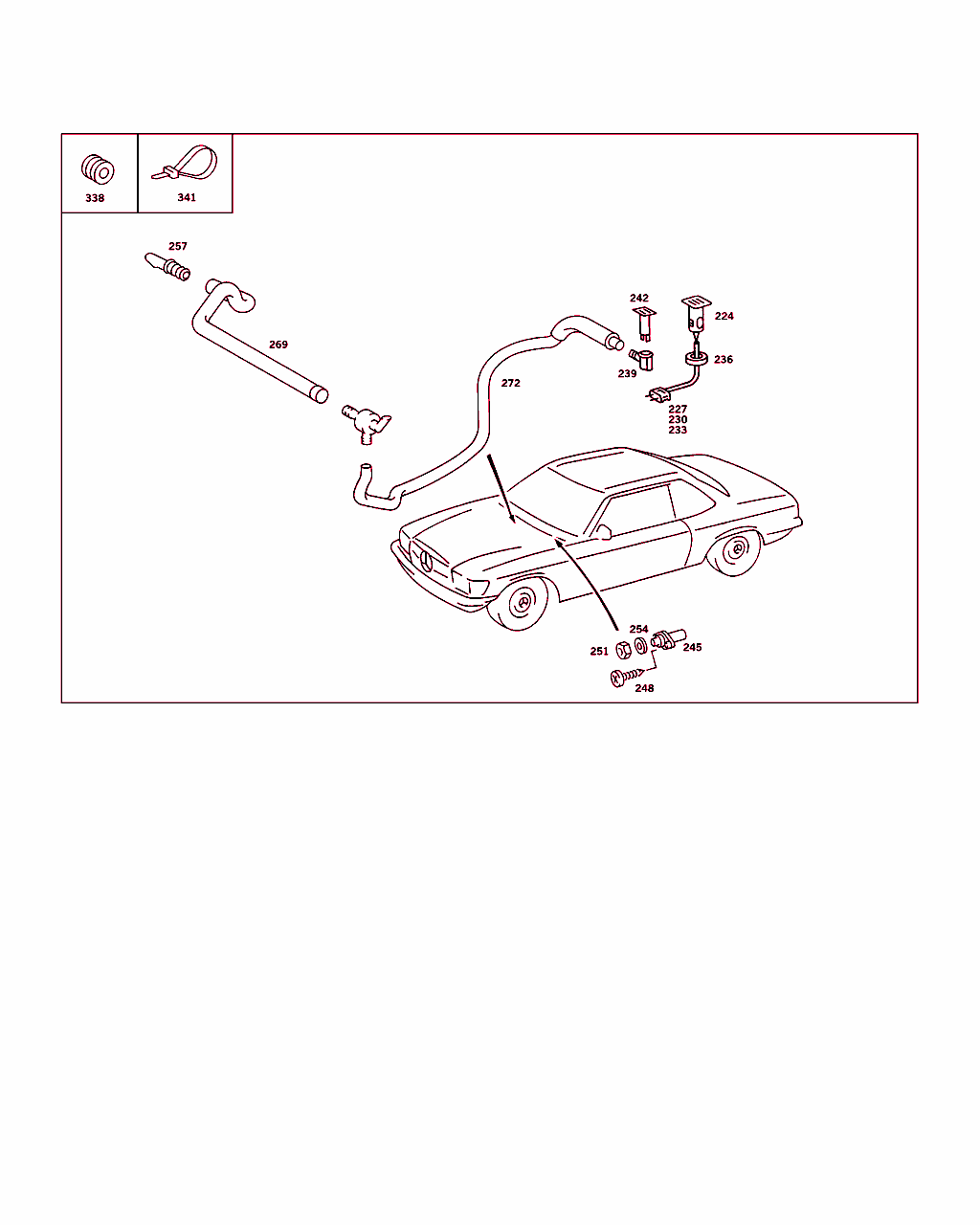

B83165000097.930129

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
5 A 107 830 01 19
デフロスタ・ノズル
左 		001
5 A 107 830 02 19
デフロスタ・ノズル
右 		001
8 A 107 831 00 98
ウェザ・ストリップ
デフロスタ・ノズル 		002
11 A 000 983 89 10
フェルト・ストリップ
55 MM

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
 		001
14 A 107 830 16 45
エア・ダクト 002
17 A 107 830 15 45
エア・ダクト

これに変更 A 107 830 25 45
• +001 A 107 833 01 20
• +002 A 116 835 01 97
• +002 N 912003 003000

ﾌｯﾄﾉｰﾄ解説
[204]
ｼｬｼﾅﾝﾊﾞNo.以前: 044 003398
 		-
17 A 107 830 24 45
エア・ダクト

これに変更 A 107 830 25 45
• +001 A 107 833 01 20
• +002 N 912003 003000

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[205]
ｼｬｼﾅﾝﾊﾞNo.以降: 044 003399
 		-
17 A 107 830 25 45
エア・ダクト
エアコン・ユニットの下

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
20 A 107 830 26 45
エア・ダクト
エアコン・ユニットの下

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
23 A 116 800 19 75
エレメント
センタ・エア・ダクト

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
26 A 007 997 61 82
ホース

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
29 A 000 994 96 45
ヒューズ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
32 A 116 805 00 03
アダプタ
バキューム

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
35 N 910001 003102
リベット

これに変更 A 460 990 01 97 		-
35 A 460 990 01 97
リベット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
41 A 107 833 01 20
コネクティング・ロッド

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
44 A 116 997 22 81
グロメット

ﾌｯﾄﾉｰﾄ解説
[203]
FROM CHASSIS
924 005231
044 016423
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
47 N 912003 003000
デュオ・クリップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
50 A 107 831 01 42
シーリング・フレーム
センタ・エア・ダクト 		002
53 A 107 831 01 34
テンション・スプリング
センタ・エア・ダクト / ヒータ・ハウジング

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		004
53 A 116 831 00 34
テンション・スプリング
センタ・エア・ダクト / ヒータ・ハウジング

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
56 A 115 987 03 40
ラバー・バッファ

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
56 A 115 987 03 40
ラバー・バッファ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
62 A 107 830 07 45
エア・ダクト
インストルメント・パネル左側の下

ﾌｯﾄﾉｰﾄ解説
[223]
FOR COLOR AND CODE NOS. SEE PASSENGER CAR EQUIPMENT MANUAL
[798]
UP TO CHASSIS NEW EQUIPMENT 7/75
024 010755 EXCEPT FOR 010745-010754
044 027279 EXCEPT FOR 027268,027277
 		001
62 A 107 830 07 45
エア・ダクト
インストルメント・パネル左側の下

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[799]
FROM CHASSIS NEW EQUIPMENT 7/75
024 010756 ALSO INSTALLED ON 010745-010754
044 027279 ALSO INSTALLED ON 027268,027277

ﾌｯﾄﾉｰﾄ解説
[901]
============================================================================I
FROM CHASSIS,SEE FOOTN.799:UP TO CHASSIS SEE FOOTN.800
CODE AND COLOR NO.:                                                         I
    101   I    102   I    103   I    104   I    105   I    106   I    107   I
    201   I    202   I    203   I    204   I    205   I    206   I    207   I
    901   I    902   I    903   I    904   I    905   I    906   I          I
  BLACK   I   BLUE   I  TOBACCO I  BAMBOO  IPARCHMENT I   MOSS   I   RED    I
[902]
  NO.9007 I  NO.5045 I  NO.8209 I  NO.8210 I  NO.8211 I  NO.6054 I  NO.3055 I
============================================================================I
 		001
62 A 107 830 29 45
エア・ダクト
インストルメント・パネル左側の下

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[800]
UP TO CHASSIS NEW EQUIPMENT 9/79
024 028330 FEDERAL,EXCEPT FOR
  028114,  028229,  028262,  028279,  028323.
  028114,  028229,  028262,  028279,  028323.
024 028374 CALIFORNIA,EXCEPT FOR 028352
044 058371 FEDERAL EXCEPT FOR
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058396 CALIFORNIA,EXCEPT FOR 028352
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.

ﾌｯﾄﾉｰﾄ解説
[901]
============================================================================I
FROM CHASSIS,SEE FOOTN.799:UP TO CHASSIS SEE FOOTN.800
CODE AND COLOR NO.:                                                         I
    101   I    102   I    103   I    104   I    105   I    106   I    107   I
    201   I    202   I    203   I    204   I    205   I    206   I    207   I
    901   I    902   I    903   I    904   I    905   I    906   I          I
  BLACK   I   BLUE   I  TOBACCO I  BAMBOO  IPARCHMENT I   MOSS   I   RED    I
[902]
  NO.9007 I  NO.5045 I  NO.8209 I  NO.8210 I  NO.8211 I  NO.6054 I  NO.3055 I
============================================================================I
 		001
62 A 107 830 35 45
エア・ダクト
インストルメント・パネル左側の下

ﾌｯﾄﾉｰﾄ解説
[801]
FROM CHASSIS NEW EQUIPMENT 9/79
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058371 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA,ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[821]
UP TO END OF MODEL YEAR'82

ﾌｯﾄﾉｰﾄ解説
[915]
=======================================================================================I
FROM CHASSIS,SEE FOOTN.801:UP TO CHASSIS SEE FOOTN.821                                 I
CODE AND COLOR NO.:                                                                    I
    131   I    132   I    133   I    134   I    135   I    136   I    137   I    138   I
    231   I    232   I    233   I    234   I    235   I    236   I    237   I    238   I
    931   I    932   I    933   I    934   I    935   I    936   I    937   I    938   I
  BLACK   I   BLUE   I  BRAZIL  I   DATE   I   CREAM  I   OLIVE  I   SIENNA I   GREY   I
[916]
  NO.9051 I  NO.5076 I  NO.8316 I  NO.8326 I  NO.8336 I  NO.6086 I  NO.3076 I  NO.7101 I
=======================================================================================I
 		001
62 A 107 830 08 45
エア・ダクト
インストルメント・パネル右側の下

ﾌｯﾄﾉｰﾄ解説
[223]
FOR COLOR AND CODE NOS. SEE PASSENGER CAR EQUIPMENT MANUAL
[798]
UP TO CHASSIS NEW EQUIPMENT 7/75
024 010755 EXCEPT FOR 010745-010754
044 027279 EXCEPT FOR 027268,027277
 		001
62 A 107 830 08 45
エア・ダクト
インストルメント・パネル右側の下

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[799]
FROM CHASSIS NEW EQUIPMENT 7/75
024 010756 ALSO INSTALLED ON 010745-010754
044 027279 ALSO INSTALLED ON 027268,027277

ﾌｯﾄﾉｰﾄ解説
[901]
============================================================================I
FROM CHASSIS,SEE FOOTN.799:UP TO CHASSIS SEE FOOTN.800
CODE AND COLOR NO.:                                                         I
    101   I    102   I    103   I    104   I    105   I    106   I    107   I
    201   I    202   I    203   I    204   I    205   I    206   I    207   I
    901   I    902   I    903   I    904   I    905   I    906   I          I
  BLACK   I   BLUE   I  TOBACCO I  BAMBOO  IPARCHMENT I   MOSS   I   RED    I
[902]
  NO.9007 I  NO.5045 I  NO.8209 I  NO.8210 I  NO.8211 I  NO.6054 I  NO.3055 I
============================================================================I
 		001
62 A 107 830 30 45
エア・ダクト
インストルメント・パネル右側の下

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[800]
UP TO CHASSIS NEW EQUIPMENT 9/79
024 028330 FEDERAL,EXCEPT FOR
  028114,  028229,  028262,  028279,  028323.
  028114,  028229,  028262,  028279,  028323.
024 028374 CALIFORNIA,EXCEPT FOR 028352
044 058371 FEDERAL EXCEPT FOR
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058396 CALIFORNIA,EXCEPT FOR 028352
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.

ﾌｯﾄﾉｰﾄ解説
[901]
============================================================================I
FROM CHASSIS,SEE FOOTN.799:UP TO CHASSIS SEE FOOTN.800
CODE AND COLOR NO.:                                                         I
    101   I    102   I    103   I    104   I    105   I    106   I    107   I
    201   I    202   I    203   I    204   I    205   I    206   I    207   I
    901   I    902   I    903   I    904   I    905   I    906   I          I
  BLACK   I   BLUE   I  TOBACCO I  BAMBOO  IPARCHMENT I   MOSS   I   RED    I
[902]
  NO.9007 I  NO.5045 I  NO.8209 I  NO.8210 I  NO.8211 I  NO.6054 I  NO.3055 I
============================================================================I
 		001
62 A 107 830 36 45
エア・ダクト
インストルメント・パネル右側の下

ﾌｯﾄﾉｰﾄ解説
[801]
FROM CHASSIS NEW EQUIPMENT 9/79
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058371 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA,ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
[821]
UP TO END OF MODEL YEAR'82

ﾌｯﾄﾉｰﾄ解説
[915]
=======================================================================================I
FROM CHASSIS,SEE FOOTN.801:UP TO CHASSIS SEE FOOTN.821                                 I
CODE AND COLOR NO.:                                                                    I
    131   I    132   I    133   I    134   I    135   I    136   I    137   I    138   I
    231   I    232   I    233   I    234   I    235   I    236   I    237   I    238   I
    931   I    932   I    933   I    934   I    935   I    936   I    937   I    938   I
  BLACK   I   BLUE   I  BRAZIL  I   DATE   I   CREAM  I   OLIVE  I   SIENNA I   GREY   I
[916]
  NO.9051 I  NO.5076 I  NO.8316 I  NO.8326 I  NO.8336 I  NO.6086 I  NO.3076 I  NO.7101 I
=======================================================================================I
 		001
65 A 107 831 03 98
ウェザ・ストリップ
左 		001
65 A 107 831 04 98
ウェザ・ストリップ
右 		001
68 A 113 984 00 37
スライド・ピース

これに変更 A 115 586 00 72 		-
68 A 115 586 00 72
リペア・キット
エア・ダクト / インストルメント・パネル 		002
71 N 007981 004252
鉄板ビス
エア・ダクト / インストルメント・パネル 		001
74 N 009021 005202
ウインドウ

これに変更 N 009021 005205 		-
74 N 009021 005205
ウインドウ
エア・ダクト / インストルメント・パネル 		002
77 A 000 994 71 45
ナット
アウタ・エア・ダクト / センタ・エア・ダクト 		002
80 N 007981 004252
鉄板ビス
アウタ・エア・ダクト / センタ・エア・ダクト 		002
83 N 000137 005203
スプリングワッシャ
アウタ・エア・ダクト / センタ・エア・ダクト 		002
86 A 107 831 05 12
アングル
エア・ダクト / 足踏式パーキング・ブレーキ 		001
89 A 120 420 02 27
ボルト
マウント・ブラケット・ロッキング・プレート /足踏式パーキング・ブレーキ装備 		001
92 N 000125 006421
ウインドウ
マウント・ブラケット / 足踏式パーキング・ ブレーキ

これに変更 N 000125 006449 		001
92 N 000125 006449
ウインドウ
マウント・ブラケット / 足踏式パーキング・ ブレーキ 		001
95 N 912004 006102
ロック・ワッシャ
マウント・ブラケット / 足踏式パーキング・ ブレーキ 		001
98 N 000934 006007
ナット
マウント・ブラケット / 足踏式パーキング・ ブレーキ 		001
101 A 000 994 34 45
ヒューズ

これに変更 A 000 994 06 45 		-
101 A 000 994 06 45
クリップ・ナット
マウント・ブラケット / エア・ダクト 		002
104 N 007981 004248
鉄板ビス
マウント・ブラケット / エア・ダクト 		001
107 N 000125 005317
ウインドウ

これに変更 N 000433 005304 		-
107 N 000433 005304
ウインドウ
マウント・ブラケット / エア・ダクト 		002
113 N 007981 004252
鉄板ビス
マウント・ブラケット / エア・ダクト 		001
119 A 107 831 07 12
アングル

これに変更 A 107 831 06 12 		-
119 A 107 831 06 12
アングル
ファイヤウォールのエア・ダクト 		001
122 N 007981 004258
鉄板ビス
マウント・ブラケット / ファイア・ウォール 		001
125 N 000125 005317
ウインドウ

これに変更 N 000433 005304 		-
125 N 000433 005304
ウインドウ
マウント・ブラケット / ファイア・ウォール 		001
128 N 912004 005100
ロック・ワッシャ
マウント・ブラケット / ファイア・ウォール 		001
131 A 107 830 07 43
エア・ディストリビュータ
左内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
131 A 107 830 10 43
エア・ディストリビュータ
右内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
134 A 107 830 01 20
フレーム
内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
137 A 107 831 03 34
スプリング
内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
140 A 107 830 00 43
フラップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[244]
ｼｬｼﾅﾝﾊﾞNo.以前: 044 002114
 		002
143 A 107 831 02 98
ウェザ・ストリップ
内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[244]
ｼｬｼﾅﾝﾊﾞNo.以前: 044 002114
 		002
146 A 107 831 01 98
ウェザ・ストリップ
内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[244]
ｼｬｼﾅﾝﾊﾞNo.以前: 044 002114
 		001
146 A 107 831 14 98
ウェザ・ストリップ
内気循環フラップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[244]
ｼｬｼﾅﾝﾊﾞNo.以前: 044 002114
 		001
149 A 107 831 17 98
ウェザ・ストリップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
152 A 003 989 19 85
粘着テープ

これに変更 A 003 989 54 85 		-
152 A 003 989 54 85
シーリング・テープ
270 MM TO FLAP CIRCULATION AIR

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[404]
ORDER BY THE METER
 		002
155 A 107 836 03 28
ウォータ・ディフレクタ
左

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[246]
UP TO CHASSIS
024 021541
044 046598
 		001
155 A 107 836 04 28
ウォータ・ディフレクタ
右

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[246]
UP TO CHASSIS
024 021541
044 046598
 		001
158 A 107 831 06 41
カバー
CIRCULATING AIR OPENING IN INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
161 N 910003 004103
リベット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[246]
UP TO CHASSIS
024 021541
044 046598
 		004
164 A 107 831 20 98
ウェザ・ストリップ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[246]
UP TO CHASSIS
024 021541
044 046598
 		002
167 A 107 831 03 42
シーリング・フレーム
CIRCULATING AIR OPENING COVERING TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
170 N 007976 004302
鉄板ビス
CIRCULATING AIR OPENING COVERING TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		008
170 N 007976 004302
鉄板ビス
CIRCULATING AIR OPENING COVERING TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		004
173 N 006797 005110
歯付きワッシャ
CIRCULATING AIR OPENING COVERING TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		008
173 N 006797 005110
歯付きワッシャ
CIRCULATING AIR OPENING COVERING TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		004
176 A 107 831 01 46
ダクト
LEFT REAR SPACE 		001
176 A 107 831 02 46
ダクト
RIGHT REAR SPACE 		001
179 N 007981 004331
鉄板ビス 004
185 A 007 997 24 82
ホース

これに変更 A 107 831 06 88

ﾌｯﾄﾉｰﾄ解説
[219]
EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS
024 010467
044 026755
 		-
185 A 107 831 06 88
ホース

これに変更 A 007 997 24 82 		-
185 A 007 997 24 82
ホース 002
191 A 107 831 03 46
ダクト
左 		001
191 A 107 831 04 46
ダクト
右 		001
194 N 007981 004331
鉄板ビス
リヤ・ダクト / メイン・フロア 		002
197 N 009021 004108
ウインドウ

これに変更 N 009021 004207 		-
197 N 009021 004207
ウインドウ
リヤ・ダクト / メイン・フロア 		001
200 N 007981 004330
鉄板ビス
リヤ・ダクト / メイン・フロア 		001
203 A 107 835 01 85
ファン

これに変更 A 107 830 14 85

ﾌｯﾄﾉｰﾄ解説
[212]
EXHAUST STOCK OF OLD PARTS UP TO CHASSIS:
024 003089
044 013879
 		-
203 A 107 830 14 85
操作ユニット
SUMMER VENTILATION 		001
206 A 000 991 20 22
ボール・ソケット 001
209 A 000 933 21 40
接続

これに変更 A 116 833 04 40
• +001 A 107 833 03 40
• +001 A 107 833 04 40

ﾌｯﾄﾉｰﾄ解説
[208]
ｼｬｼﾅﾝﾊﾞNo.以前: 024 000005
044 005793 ALSO INSTALLED ON 005830
 		-
209 A 116 833 00 40
オペレーティング・ハンドル

これに変更 A 116 833 04 40
• +001 A 107 833 03 40
• +001 A 107 833 04 40

ﾌｯﾄﾉｰﾄ解説
[208]
ｼｬｼﾅﾝﾊﾞNo.以前: 024 000005
044 005793 ALSO INSTALLED ON 005830
 		-
209 A 116 833 04 40
グリップ 001
212 N 007985 006193
ボルト

これに変更 N 000000 001146 		-
212 N 000000 001146
6角丸頭ボルト
操作部 / インストルメント・パネル 		002
215 N 000137 006204
スプリングワッシャ
操作部 / インストルメント・パネル 		002
218 N 000934 006007
ナット
操作部 / インストルメント・パネル 		002
221 A 107 831 01 88
接続
ヒータ・ダクトとサマー・エア・ノズルのあいだ

ﾌｯﾄﾉｰﾄ解説
[213]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 003812
044 014753 EXCEPT FOR
  014731,  014740,  014747,  014751,  014752.
 		001
221 A 107 831 02 88
接続
ヒータ・ダクトとサマー・エア・ノズルのあいだ

ﾌｯﾄﾉｰﾄ解説
[214]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 003813
044 014754 ALSO INSTALLED ON
  014731,  014740,  014747,  014751,  014752.
 		001
224 A 000 835 09 79
温度センサ
UPPER PART, AT TOP OF INSTRUMENT PANEL

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
227 A 002 545 24 28
プラグ

これに変更 A 009 545 40 28
• +002 A 001 545 38 26
• +001 A 009 545 41 28 		-
227 A 009 545 40 28
クラッチ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
230 A 009 545 41 28
クラッチ 001
233 A 001 545 38 26
コンタクト・ピン 002
236 A 107 835 00 38
スペーサ
温度センサ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
239 A 000 835 12 79
温度センサ
LOWER PART,AT TOP OF INSTRUMENT PANEL

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
242 A 123 830 05 72
温度センサ
インストルメント・パネル

ﾌｯﾄﾉｰﾄ解説
[820]
FROM MODEL YEAR 82
 		001
245 A 000 835 10 79
温度センサ
/ フロント・ウインドウ内部下のセンタ・ピース

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
248 N 007981 004336
鉄板ビス

これに変更 N 000000 000815 		-
248 N 000000 000815
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
251 N 000934 006007
ナット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
254 N 000125 006421
ウインドウ

これに変更 N 000125 006449

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
254 N 000125 006449
ウインドウ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
257 A 116 835 01 68
コネクティング・ピース
フロント・パーティション右側に 		001
260 A 107 830 00 54
ノズル

ﾌｯﾄﾉｰﾄ解説
[213]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 003812
044 014753 EXCEPT FOR
  014731,  014740,  014747,  014751,  014752.
 		004
260 A 107 830 00 54
ノズル

ﾌｯﾄﾉｰﾄ解説
[214]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 003813
044 014754 ALSO INSTALLED ON
  014731,  014740,  014747,  014751,  014752.
 		005
263 A 115 831 43 51
ボール・インサート

ﾌｯﾄﾉｰﾄ解説
[213]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 003812
044 014753 EXCEPT FOR
  014731,  014740,  014747,  014751,  014752.
 		004
263 A 115 831 43 51
ボール・インサート

ﾌｯﾄﾉｰﾄ解説
[214]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 003813
044 014754 ALSO INSTALLED ON
  014731,  014740,  014747,  014751,  014752.
 		005
266 A 115 831 13 51
ウェイブ・リング

ﾌｯﾄﾉｰﾄ解説
[213]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 003812
044 014753 EXCEPT FOR
  014731,  014740,  014747,  014751,  014752.
 		004
266 A 115 831 13 51
ウェイブ・リング

ﾌｯﾄﾉｰﾄ解説
[214]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 003813
044 014754 ALSO INSTALLED ON
  014731,  014740,  014747,  014751,  014752.
 		005
269 A 107 831 11 88
ホース
アスピレータとフロント・パーティションのあいだ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
272 A 107 830 02 96
ホース
温度センサと エア・ジェット・ノズルの間

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
275 A 107 830 04 31
ワイヤ
BETWEEN OPERATING UNIT AND DEFROSTER NOZZLE

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
278 N 000933 005058
ボルト
CABLE RETAINER WITH WIRE CABLE TO OPERATING UNIT

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
281 N 912004 005100
ロック・ワッシャ
CABLE RETAINER WITH WIRE CABLE TO OPERATING UNIT

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
284 A 000 994 99 41
リング

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
287 A 107 830 02 31
ワイヤ 002
290 A 001 988 68 78
クリップ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		NB
293 A 000 833 00 81
マウンティング・クリップ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		NB
296 A 107 993 00 25
スプリング

ﾌｯﾄﾉｰﾄ解説
[215]
ｼｬｼﾅﾝﾊﾞNo.以前: 024 006030
ｼｬｼﾅﾝﾊﾞNo.以降: 024 003612-017712
 		001
299 A 107 830 03 85
操作ユニット
左ボール・ノズル 		001
299 A 107 830 04 85
操作ユニット
右ボール・ノズル 		001
302 N 000933 005037
ボルト 004
305 N 912004 005100
ロック・ワッシャ 004
308 A 107 833 00 40
オペレーティング・ハンドル

これに変更 A 107 833 03 40
• +001 A 107 833 04 40
• +001 A 116 833 04 40

ﾌｯﾄﾉｰﾄ解説
[208]
ｼｬｼﾅﾝﾊﾞNo.以前: 024 000005
044 005793 ALSO INSTALLED ON 005830
 		-
308 A 107 833 00 40
オペレーティング・ハンドル

これに変更 A 107 833 04 40
• +001 A 116 830 04 40
• +001 A 107 833 03 40

ﾌｯﾄﾉｰﾄ解説
[208]
ｼｬｼﾅﾝﾊﾞNo.以前: 024 000005
044 005793 ALSO INSTALLED ON 005830
 		-
308 A 107 833 03 40
オペレーティング・ハンドル

これに変更 A 107 833 05 40 		-
308 A 107 833 05 40
グリップ 002
308 A 107 833 04 40
オペレーティング・ハンドル

これに変更 A 107 833 06 40 		-
308 A 107 833 06 40
グリップ 002
311 A 107 835 01 97
ホース
左 		001
311 A 107 835 02 97
ホース
右 		001
314 A 107 836 01 65
グリル
左 		001
314 A 107 836 02 65
グリル
右 		001
317 A 107 836 00 18
グリッド 002
320 A 001 987 24 51
ラバー・プロフィール
/ ストレーナ
345 MM

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
 		002
320 A 001 987 24 51
ラバー・プロフィール
/ ストレーナ
345 MM

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
 		002
323 A 001 987 26 51
ラバー・プロフィール
エア・インレットに
232 MM

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
 		002
323 A 001 987 26 51
ラバー・プロフィール
エア・インレットに
232 MM

ﾌｯﾄﾉｰﾄ解説
[404]
ORDER BY THE METER
 		002
332 A 000 990 22 92
スプレッド・リベット 006
335 A 107 997 09 81
グロメット 001
338 A 000 997 28 81
貫通グロメット

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
341 A 001 997 41 90
結束バンド
100 MM

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
341 A 001 997 43 90
連結ピース
140 MM

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
