一覧

SPORTS CAR,COUPE
107.024 => 450 SLC USA
M: 117982, 117985
GA: 722004
LG: 765701

Schema

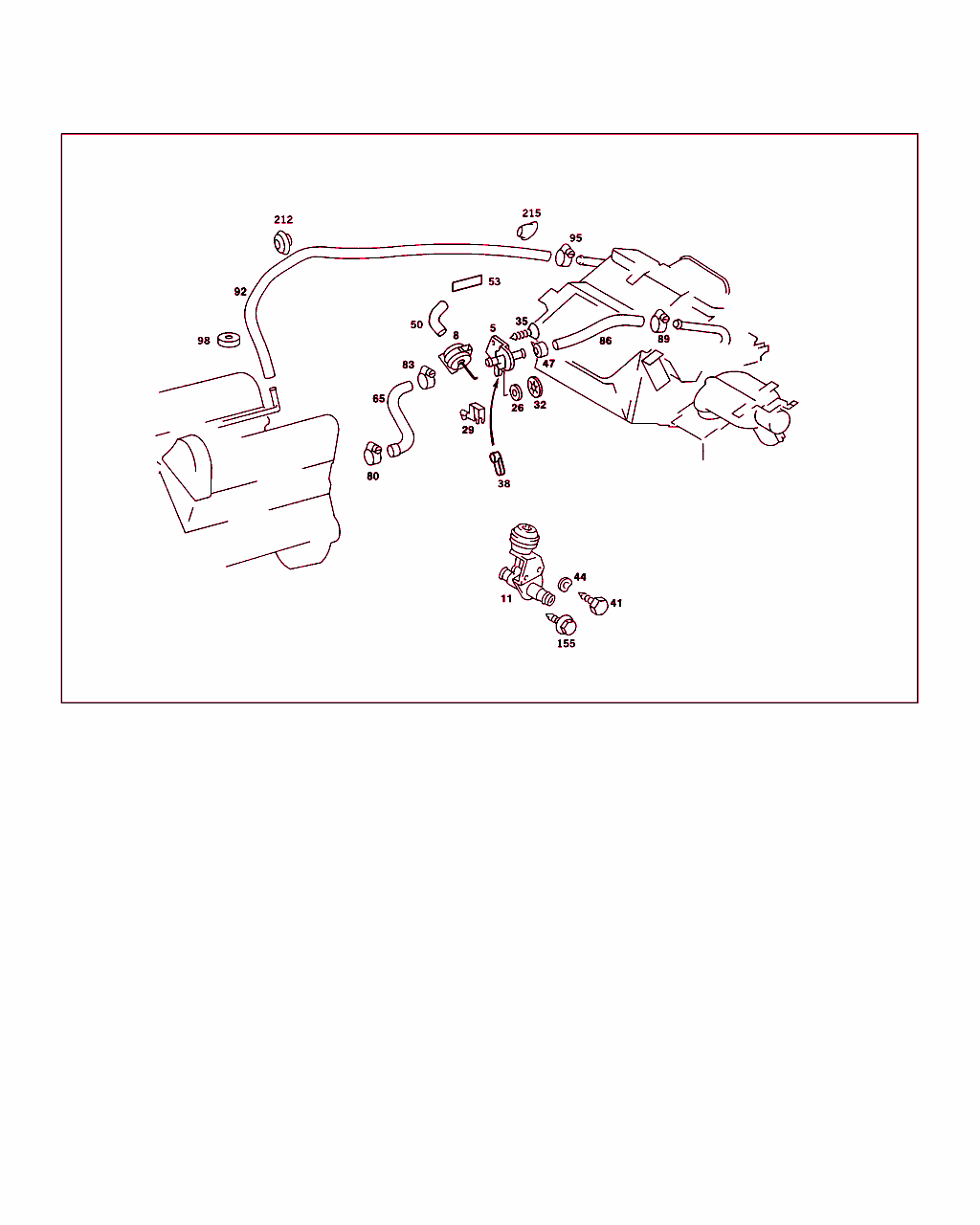

B83180000152.930129

[image]

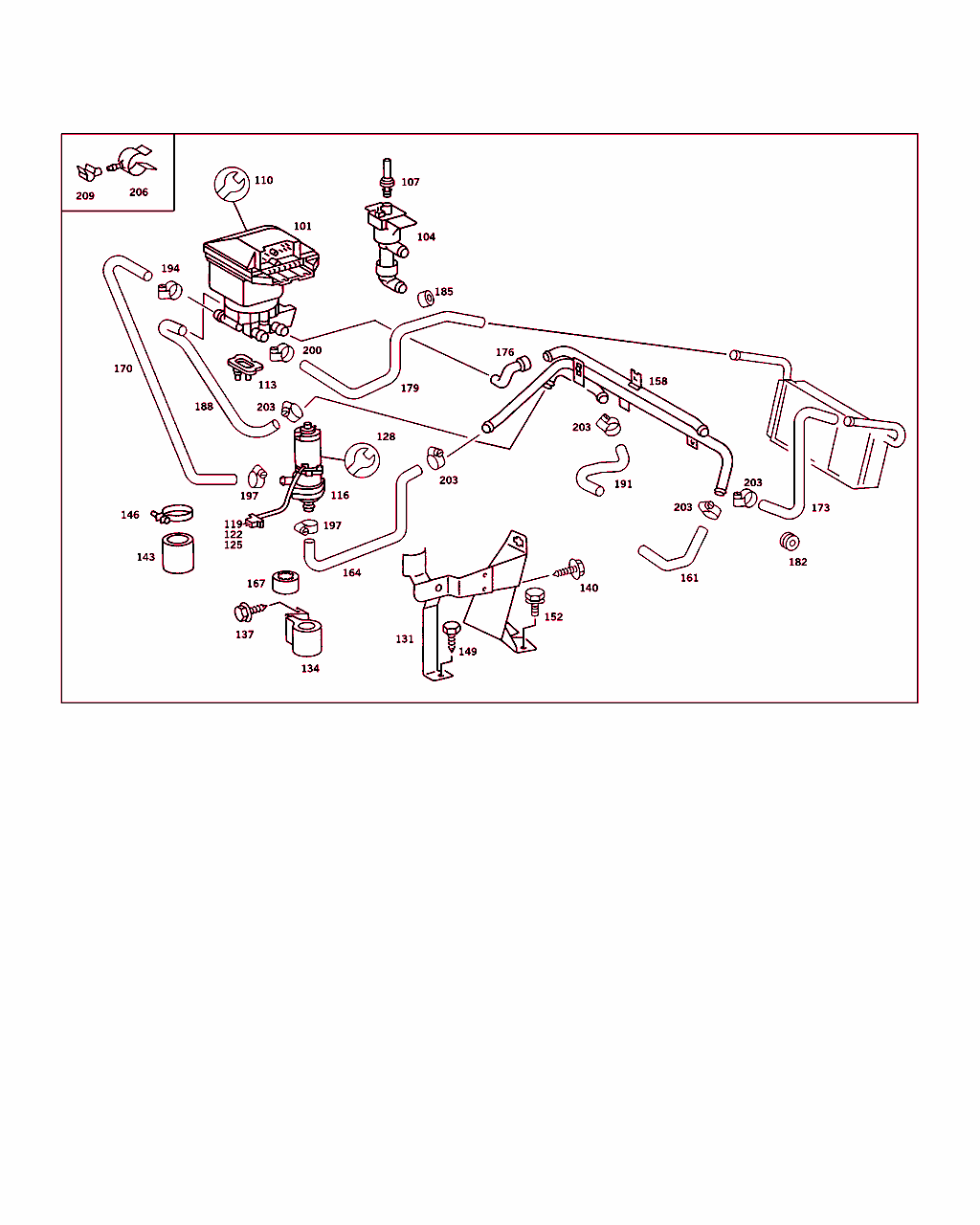

B83180000153.930129

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
5 A 107 835 01 20
コントロール・バルブ
負圧蛇口

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
8 A 107 800 10 75
エレメント

これに変更 A 107 800 24 75
• +001 N 918002 004001

ﾌｯﾄﾉｰﾄ解説
[210]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 000871
044 010086
 		-
8 A 107 800 24 75
エレメント
負圧蛇口

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
11 A 116 830 06 84
バルブ

これに変更 A 107 830 05 84 		-
11 A 116 835 00 20
コントロール・バルブ

これに変更 A 107 830 05 84 		-
11 A 107 830 05 84
バルブ
負圧蛇口

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[230]
FROM CHASSIS: SEE FIG.NO.820
 		001
26 A 116 987 05 41
ウインドウ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		003
29 A 000 994 20 60
クリップ

これに変更 N 918002 004001 		-
29 N 918002 004001
クランプ・スプリング

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[211]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 000872
044 010087
 		001
32 A 000 994 96 45
ヒューズ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		003
35 N 007983 004269
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
38 A 116 833 10 45
レバー

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
41 N 007976 004211
鉄板ビス
WATER FAUCET TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
44 N 000137 005203
スプリングワッシャ
WATER FAUCET TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
47 A 107 835 00 98
ガスケット

これに変更 A 116 835 01 98 		-
47 A 116 835 01 98
ウェザ・ストリップ
WATER FAUCET TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
47 A 116 835 01 98
ウェザ・ストリップ
WATER FAUCET TO INSIDE CENTRAL PART

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
50 A 107 833 01 97
ホース

これに変更 A 117 078 05 81 		-
50 A 117 078 05 81
ホース

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
53 A 003 989 85 85
粘着テープ・カット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
65 A 107 831 07 94
ホース
エンジンと蛇口の間

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
80 N 916026 023001
クランプ

これに変更 N 000000 000667 		-
80 N 000000 000667
クランプ 001
83 N 916026 020001
クランプ 001
86 A 107 831 01 94
ホース
蛇口とヒータ・ハウジングのあいだ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
89 N 916026 020001
クランプ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
92 A 107 831 02 94
ホース

これに変更 A 107 831 10 94

ﾌｯﾄﾉｰﾄ解説
[216]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203-010965 AND FROM 012232 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208-010965 AND FROM 012232 ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762-027714 AND FROM 030254 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763-027714 AND FROM 030253 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		-
92 A 107 831 10 94
ホース
HEATING RETURN

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
95 N 916026 020001
クランプ

ﾌｯﾄﾉｰﾄ解説
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
98 A 110 987 05 41
リング

ﾌｯﾄﾉｰﾄ解説
[218]
024 007358-018773
044 019299-040437
ｼｬｼﾅﾝﾊﾞNo.以降:
024 011200 FEDERAL,ALSO INSTALLED ON
  011079,  011129,  011139,  011155,  011162.
  011079,  011129,  011139,  011155,  011162.
044 028300 FEDERAL ALSO INSTALLED ON
  028113,  028128,  028155,  028183,  028191,  028204,  028224,  028232,  028239,  028249,  028255,  028274,  028286.
044 028293 CALIFORNIA ALSO INSTALLED ON
  026370,  028010,  028094,  028211,  028236,  028261,  028273.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
101 A 000 830 03 84
バルブ
オートマチック

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
110 A 000 830 01 98
リペア・キット 001
113 A 000 820 35 10
スイッチ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
116 A 000 835 25 64
ポンプ

これに変更 A 000 835 69 64 		-
116 A 000 835 69 64
循環ポンプ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
119 A 002 545 24 28
プラグ

これに変更 A 009 545 40 28
• +002 A 001 545 38 26
• +001 A 009 545 41 28 		-
119 A 009 545 40 28
クラッチ
2-PIN

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
122 A 009 545 41 28
クラッチ 001
125 A 001 545 38 26
コンタクト・ピン 002
128 A 000 586 05 83
リペア・キット
ウォータ・ポンプ 		001
131 A 107 830 04 14
ホルダー

これに変更 A 107 830 08 14

ﾌｯﾄﾉｰﾄ解説
[232]
EXHAUST STOCK OF OLD PART NUMBERS FIRST FROM CHASSIS SEE FOOTN.60 UP TO CHASSIS 024 031060; 025 000171; 044 064180; 045 000155
 		-
131 A 107 830 08 14
ホルダー
CONTROL VALVE AND WATER PUMP

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
140 A 116 990 17 01
ボルト

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		002
143 A 116 835 02 96
サポート

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
146 N 916026 045000
クランプ

これに変更 A 006 997 06 90 		-
146 A 006 997 06 90
ホース・クランプ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
149 N 007976 005202
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
152 N 914005 006002
ワッシャ付きボルト

これに変更 N 914005 006042 		-
152 N 914005 006042
ワッシャ付きボルト

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		002
155 N 914031 004206
鉄板ビス

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		002
158 A 107 830 04 15
パイプ
/ フロント・ウインドウ内部下のセンタ・ピース

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
161 A 107 831 18 94
ホース
エンジンとフューエル・フィード・ラインの間

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
164 A 107 831 13 94
ホース
フューエル・フィード・ラインとウォータ・ポンプのあいだ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
170 A 107 831 19 94
ホース
FEED; FROM HEATING WATER PUMP TO CONTROL VALVE

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
173 A 107 831 15 94
ホース
熱交換器とリターン・ラインのあいだ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
179 A 107 831 14 94
成形ホース
コントロール・バルブと熱交換器の 間

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
182 A 322 997 14 81
貫通グロメット

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		001
185 A 110 987 05 41
リング

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
188 A 107 831 17 94
ホース
BETWEEN CONTROL VALVE AND RETURN LINE TO ENGINE

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[811]
UP TO END OF MODEL YEAR 81
 		001
191 A 107 831 20 94
ホース
BETWEEN RETURN LINE AND ENGINE RETURN PIPE

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
194 N 916026 016001
クランプ

これに変更 A 005 997 01 90 		-
194 A 005 997 01 90
ホース・クランプ
エンジンとフューエル・フィード・ラインの間
14-24 		NB
197 N 916026 016001
クランプ

これに変更 A 005 997 01 90 		-
197 A 005 997 01 90
ホース・クランプ
循環ポンプからエンジンへ
14-24 		NB
200 N 916033 021100
クランプ
コントロール・バルブと熱交換器の 間
21/9 		NB
200 N 916033 021100
クランプ
熱交換器とリターン・ラインのあいだ
21/9 		NB
203 N 916026 020001
クランプ
エンジンとフューエル・フィード・ラインの間
20-27 		NB
206 A 110 995 01 65
クランピング・ブラケット

ﾌｯﾄﾉｰﾄ解説
[224]
FROM CHASSIS
024 021513
044 046543
 		001
209 A 617 187 01 90
スペーサ

ﾌｯﾄﾉｰﾄ解説
[224]
FROM CHASSIS
024 021513
044 046543
 		001
212 A 108 997 04 81
グロメット 001
215 A 107 997 01 81
グロメット 002
