SPORTS CAR,COUPE
107.024 => 450 SLC USA
M: 117982, 117985
GA: 722004
LG: 765701

Schema

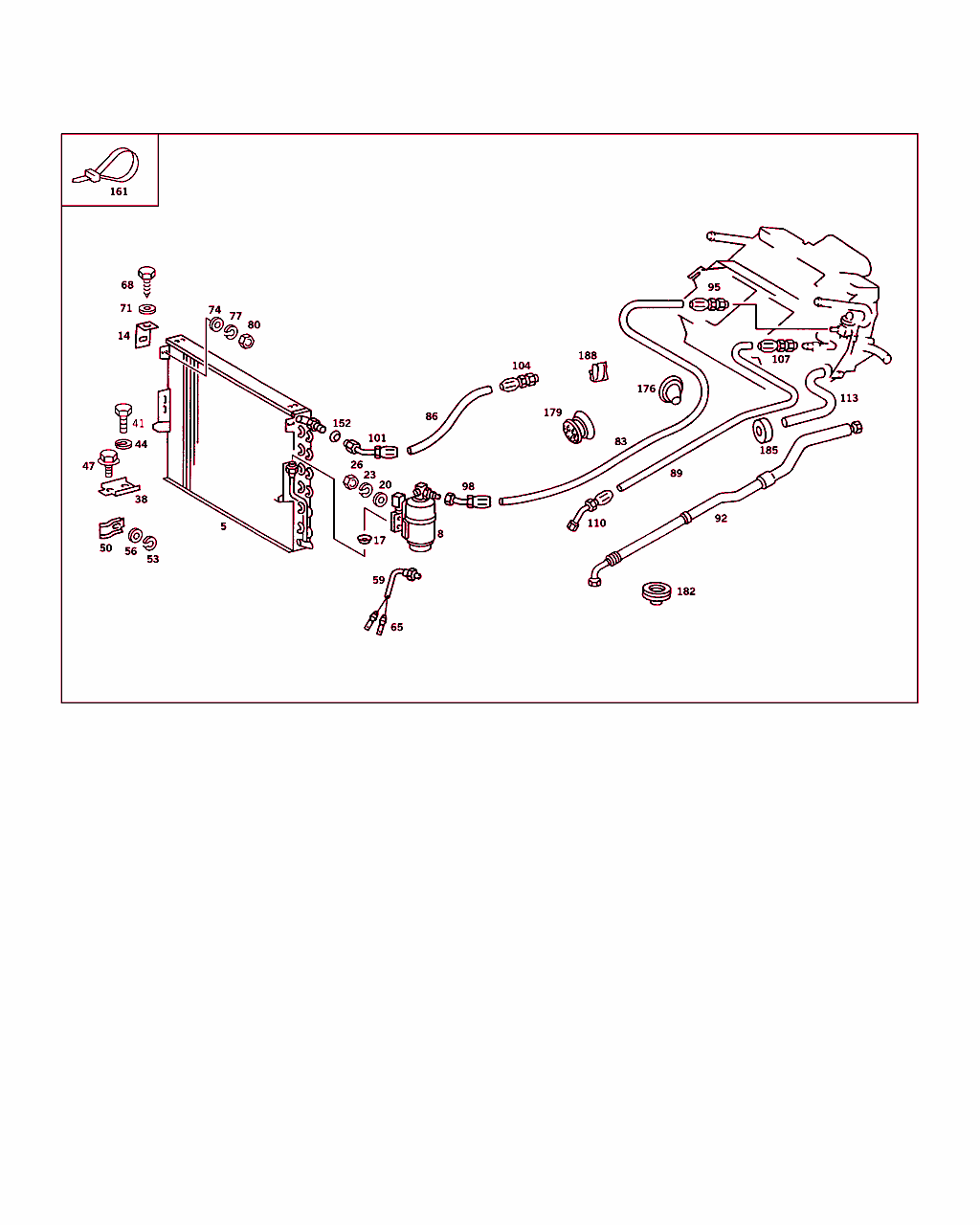

B83195000203.930714

[image]

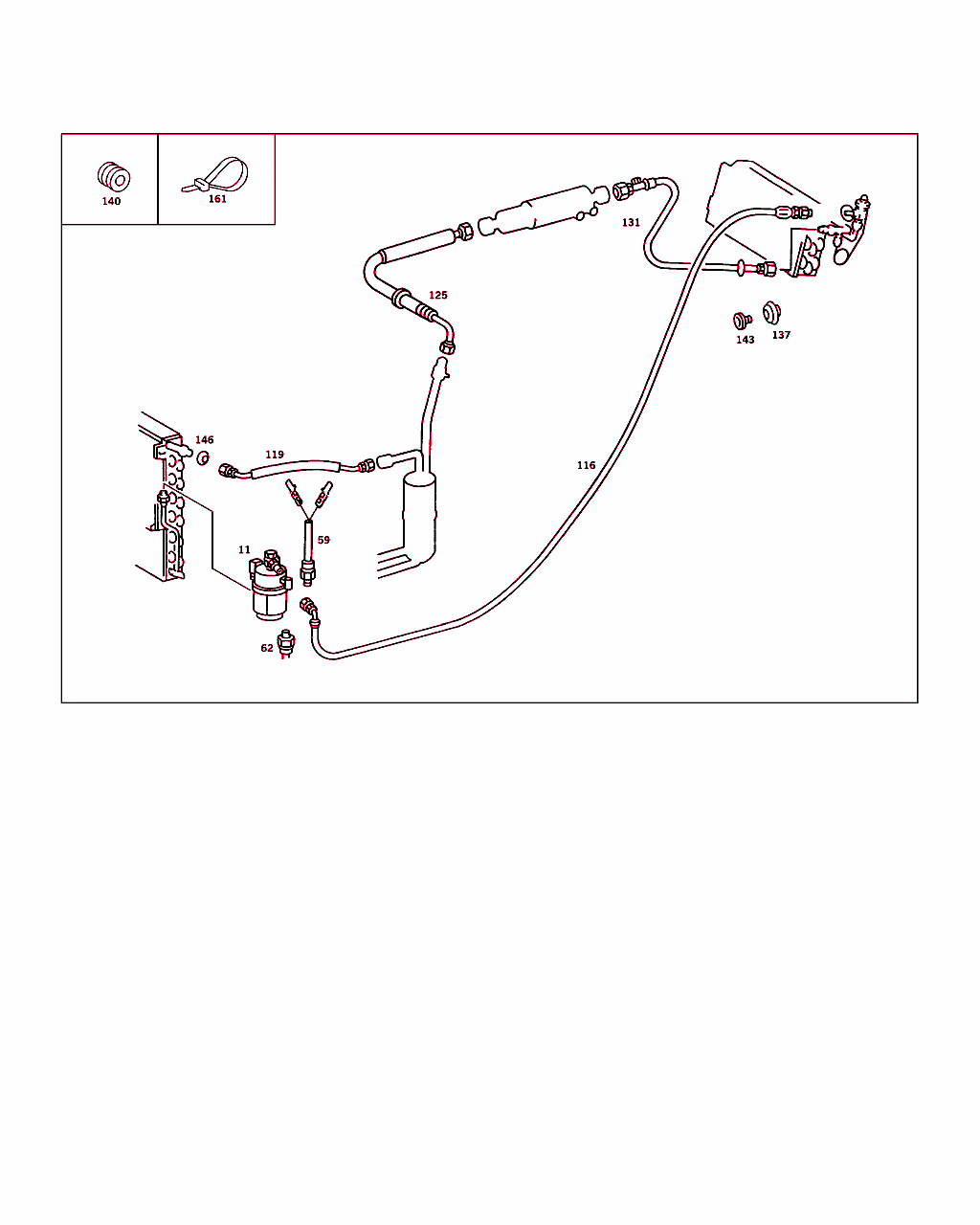

B83195000204.930129

[image]

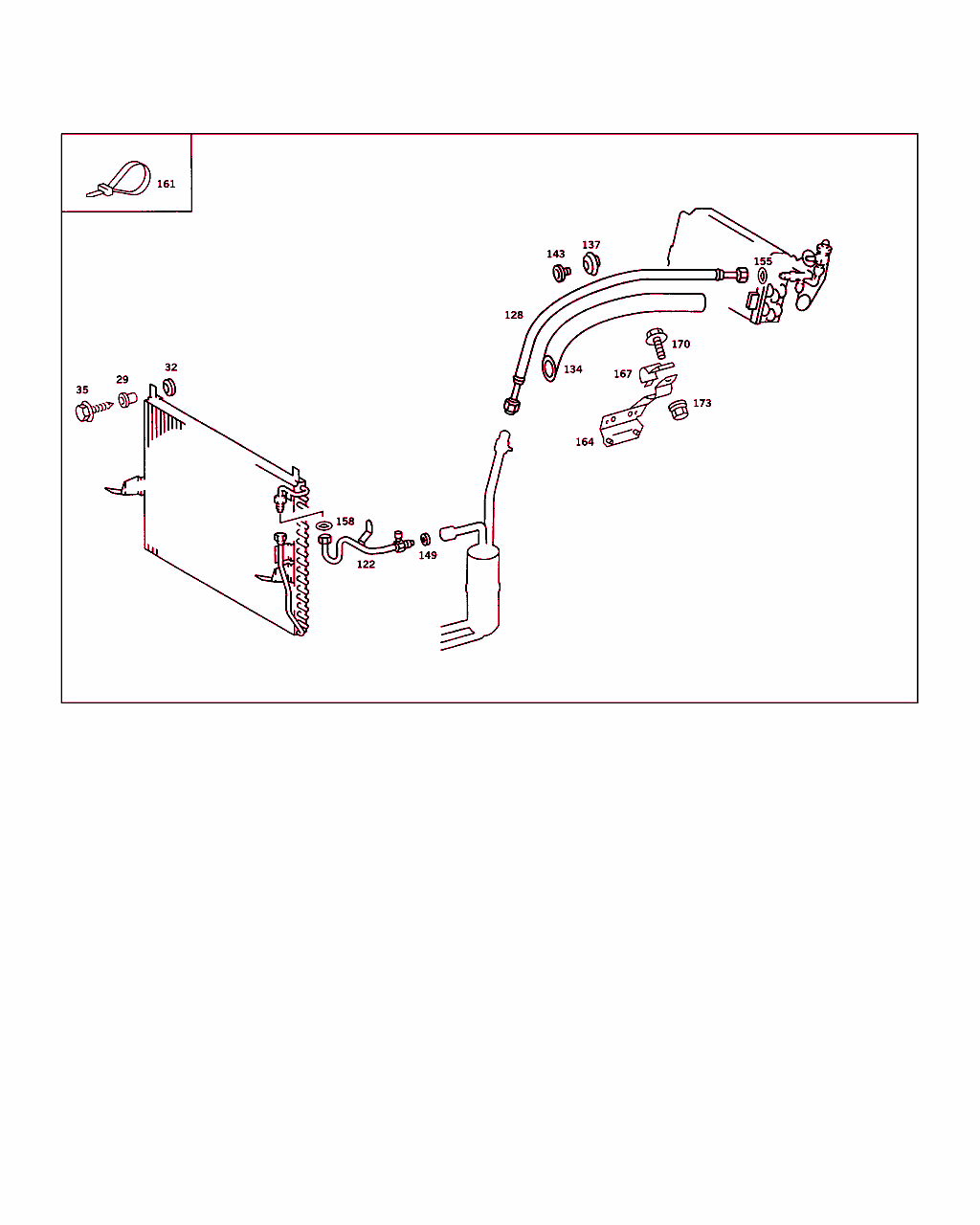

B83195000205.930129

[image]
x 番号 部品番号 名称/補足ｲﾝﾌｫﾒｰｼｮﾝ 数 ﾊﾞｰｼﾞｮﾝ
5 A 000 835 03 70
コンデンサ

♦ 以下から選択できます A 000 835 07 70

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
5 A 000 835 07 70
コンデンサ

これに変更 A 000 835 03 70 		-
5 A 000 835 03 70
コンデンサ

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
5 A 107 830 07 70
コンデンサ

これに変更 A 107 830 12 70 		-
5 A 107 830 12 70
コンデンサ

ﾌｯﾄﾉｰﾄ解説
[216]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203-010965 AND FROM 012232 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208-010965 AND FROM 012232 ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762-027714 AND FROM 030254 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763-027714 AND FROM 030253 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[247]
FROM CHASSIS
024 010966-012231
044 027715-030252
 		001
8 A 107 830 00 83
タンク

ﾌｯﾄﾉｰﾄ解説
[216]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203-010965 AND FROM 012232 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208-010965 AND FROM 012232 ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762-027714 AND FROM 030254 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763-027714 AND FROM 030253 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[220]
UP TO CHASSIS
024 015124
044 035459
 		001
8 A 000 835 22 71
リザーバ

ﾌｯﾄﾉｰﾄ解説
[247]
FROM CHASSIS
024 010966-012231
044 027715-030252
 		001
11 A 107 830 02 83
タンク

これに変更 A 107 830 07 83
• +001 A 124 821 36 51 		-
11 A 107 830 07 83
タンク

これに変更 A 107 830 09 83

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
[238]
EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS
024,025,044 UNTIL PRODUCTION STOP
045 011045
 		-
11 A 107 830 09 83
タンク

これに変更 A 107 830 12 83
• +001 A 004 820 67 10 		-
11 A 107 830 12 83
リザーバ 001
14 A 000 835 00 12
アングル
コンデンサーに

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
17 A 000 835 02 98
ガスケット

これに変更 A 000 835 65 98 		-
17 A 000 835 65 98
ガスケット
リザーバ/コンデンサ 		001
20 N 000125 006421
ウインドウ
リザーバ/コンデンサ

これに変更 N 000125 006449 		002
20 N 000125 006449
ウインドウ
リザーバ/コンデンサ 		002
23 N 912004 006102
ロック・ワッシャ
リザーバ/コンデンサ 		002
26 N 000934 006007
ナット
リザーバ/コンデンサ 		002
38 A 107 830 01 14
ホルダー
補助ファン

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		003
41 N 000933 005037
ボルト
ブラケット / サブ・ファン

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		003
44 N 912004 005100
ロック・ワッシャ
ブラケット / サブ・ファン

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		003
47 N 914001 006002
ワッシャ付きボルト
AUXILIARY FAN TO STRUT

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		003
50 A 114 995 02 20
マウンティング・クランプ
AUXILIARY FAN TO STRUT

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
53 N 912004 006102
ロック・ワッシャ
AUXILIARY FAN TO STRUT

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
56 N 000125 006421
ウインドウ
AUXILIARY FAN TO STRUT

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		002
59 A 000 820 07 10
スイッチ

これに変更 A 000 820 80 10 		-
59 A 000 820 80 10
レギュレータ
フルード・リザーバーに

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
62 A 000 820 43 10
スイッチ

これに変更 A 124 820 59 10 		-
62 A 124 820 59 10
スイッチ

これに変更 A 124 821 36 51 		-
62 A 124 821 36 51
スイッチ

これに変更 A 124 820 83 10 		-
62 A 124 820 83 10
スイッチ
フルード・リザーバーに

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
65 A 000 546 06 45
保護キャップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
68 N 007976 005202
鉄板ビス
コンデンサ / 補強材およびフロント・クロス・メンバ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
71 N 009021 006103
ウインドウ

これに変更 N 009021 006208 		-
71 N 009021 006208
ウインドウ
コンデンサ / 補強材およびフロント・クロス・メンバ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
74 N 000125 006421
ウインドウ
コンデンサ / 補強材およびフロント・クロス・メンバ

これに変更 N 000125 006449

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
74 N 000125 006449
ウインドウ
コンデンサ / 補強材およびフロント・クロス・メンバ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
77 N 912004 006102
ロック・ワッシャ
コンデンサ / 補強材およびフロント・クロス・メンバ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
80 N 000934 006007
ナット
コンデンサ / 補強材およびフロント・クロス・メンバ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		002
83 A 000 997 35 52
ホース

これに変更 A 018 997 18 82
• +001 A 000 997 06 68
• +001 A 001 997 84 68 		-
83 A 018 997 18 82
ホース

これに変更 A 018 997 59 82
• +001 A 000 997 01 68
• +001 A 000 997 51 68 		-
83 A 018 997 59 82
ホース

これに変更 A 000 997 17 52 		-
83 A 000 997 17 52
ホース
ブラック
2700 MM

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
83 A 000 997 17 52
ホース
ブラック
1650 MM

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
86 A 000 997 21 52
ホース

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
89 A 000 997 23 52
ホース

ﾌｯﾄﾉｰﾄ解説
[201]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 008202 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008207 CALIFORNIA,EXCEPT FOR
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021761 FEDERAL,EXCEPT FOR
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021762 CALIFORNIA,EXCEPT FOR
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
92 A 107 830 00 96
ホース
800 MM

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[221]
ｼｬｼﾅﾝﾊﾞNo.以前:
024 019097 FEDERAL EXCEPT FOR
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019056 CALIFORNIA EXCEPT FOR
  018962,  018965,  018986,  019008,  019010,  019037.
044 042309 FEDERAL EXCEPT FOR
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043357 CALIFORNIA EXCEPT FOR
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
95 A 000 997 94 68
アダプタ
5/8", 180 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
98 A 001 997 19 68
アダプタ
3/8", 150 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
101 A 000 997 16 68
ホース接続部
3/4", 135 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
101 A 000 997 18 68
アダプタ
3/4", 150 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
104 A 000 997 54 68
ホース接続部
3/4", 180 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
107 A 000 997 56 68
ホース接続部
7/8", 180 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
110 A 000 997 23 68
ホース接続部
7/8", 135 GRAD

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
113 A 107 835 06 97
ホース

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
116 A 107 831 06 94
ホース

これに変更 A 000 997 35 52 		-
116 A 000 997 35 52
ホース

これに変更 A 018 997 18 82
• +001 A 000 997 06 68
• +001 A 001 997 84 68 		-
116 A 018 997 18 82
ホース

これに変更 A 018 997 59 82
• +001 A 000 997 01 68
• +001 A 000 997 51 68 		-
116 A 018 997 59 82
ホース

これに変更 A 000 997 17 52 		-
116 A 000 997 17 52
ホース
フルード・リザーバからエバポレータへ

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
119 A 107 830 14 96
ホース
コンプレッサからコンデンサへ 		001
125 A 107 830 05 15
ホース
エバポレータからエア・コンプレッサまで

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
131 A 107 830 08 15
パイプ
エバポレータからフューエル・クーラまで

ﾌｯﾄﾉｰﾄ解説
[801]
FROM CHASSIS NEW EQUIPMENT 9/79
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058371 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA,ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		001
134 A 107 835 06 97
ホース
エバポレータの冷媒ラインからエア・コンプレッサまで

ﾌｯﾄﾉｰﾄ解説
[811]
UP TO END OF MODEL YEAR 81
 		001
137 A 108 997 04 81
グロメット

ﾌｯﾄﾉｰﾄ解説
[801]
FROM CHASSIS NEW EQUIPMENT 9/79
024 028331 FEDERAL,ALSO INSTALLED ON
  028114,  028229,  028262,  028279,  028323.
024 028375 CALIFORNIA,ALSO INSTALLED ON 028352
044 058371 FEDERAL,ALSO INSTALLED ON
  057628,  057975,  058260,  058280,  058284,  058289,  058296,  058297,  058305,  058324-  058326,  058328,  058329,  058332,
  058333,  058335-  058337,  058339-  058345,  058350-  058352,  058360,  058362,  058365,  058368.
044 058397 CALIFORNIA,ALSO INSTALLED ON
  058211,  058331,  058348,  058353,  058355-  058357,  058361,  058363,  058367,  058371,  058376,  058379,  058389,  058391.
 		001
143 A 186 997 07 81
グロメット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
146 A 000 835 02 98
ガスケット

これに変更 A 000 835 65 98 		-
146 A 000 835 65 98
ガスケット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		NB
149 A 000 835 03 98
ガスケット

これに変更 A 000 835 67 98 		-
149 A 000 835 67 98
ガスケット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		NB
152 A 000 835 04 98
ガスケット

これに変更 A 000 835 66 98 		-
152 A 000 835 66 98
ガスケット

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		NB
161 A 001 997 42 90
バインダ

これに変更 A 001 997 43 90 		-
161 A 001 997 43 90
連結ピース
140 MM

ﾌｯﾄﾉｰﾄ解説
[222]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 019098 FEDERAL ALSO INSTALLED ON
  018774,  018809,  018981,  018995,  018996,  019003,  019033,  019035,  019058,  019059,  019063,  019064,  019067,  019071,
  019077,  019081,  019084.
024 019057 CALIFORNIA ALSO INSTALLED ON
  018962,  018965,  018986,  019008,  019010,  019037.
044 042310 FEDERAL ALSO INSTALLED ON
  040438,  041745,  041830,  041945,  041947,  041989,  041991,  041993,  042068,  042070,  042093,  042096,  042127,  042136,
  042143,  042146,  042158,  042164,  042170,  042175,  042180,  042181,  042183,  042187,  042189,  042192,  042197,  042204,
  042217,  042223,  042225,  042228,  042230,  042242-  042244,  042246,  042248,  042251,  042259,  042267-  042269,  042281,
  042286,  042287,  042293-  042295,  042297,  042303,  042308.
044 043358 CALIFORNIA ALSO INSTALLED ON
  041948,  042072,  042118,  042120,  042125,  042132,  042134,  042138,  042166,  042169,  042171,  042178,  042212,  042232,
  042237,  042239,  042240,  042254,  042260,  042263,  042270-  042273,  042276,  042278,  042279,  042283,  042284,  042289,
  042291,  042300-  042302,  042304,  042307,  042309,  042311,  042312,  042315,  042317,  042318,  042322,  042325-  042336,
  042338,  042339,  042341,  042342,  042344,  042346,  042348,  042350,  042352-  042354,  042356.
 		001
176 A 110 782 00 19
ラバー・グロメット
タンクからエバポレータへのホース、 ファイア・フォールを通過

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
179 A 111 997 23 81
グロメット

これに変更 A 008 997 17 81 		-
179 A 008 997 17 81
グロメット
ケーブル・スルー・ホール

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
182 A 186 997 07 81
グロメット
エバポレータからエア・コンプレッサまでのファイヤウォールを通るホース

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
185 A 110 987 05 41
リング
エバポレータからパイプまでのホース

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
 		001
188 A 003 988 08 78
クリップ

ﾌｯﾄﾉｰﾄ解説
[202]
ｼｬｼﾅﾝﾊﾞNo.以降:
024 008203 FEDERAL,ALSO INSTALLED ON
  007359,  007971,  008070,  008072,  008077,  008107,  008117,  008126,  008133,  008139,  008145,  008147,  008149,  008182,
  008193,  008194,  008198.
024 008208 CALIFORNIA ALSO INSTALLED ON
  008085,  008103,  008128,  008136,  008143,  008151,  008154,  008160,  008183.
044 021762 FEDERAL,ALSO INSTALLED ON
  021243,  021395,  021398,  021440,  021450,  021499,  021513,  021517,  021526,  021534,  021542,  021555,  021687,  021690,
  021695,  021700,  021723,  021732,  021734,  021735,  021737,  021738,  021742,  021744,  021745.
044 021763 CALIFORNIA,ALSO INSTALLED ON
  019300,  021353,  021407,  021483,  021490,  021506,  021566,  021584,  021588,  021595,  021609,  021620,  021707,  021736,
  021739,  021741,  021746.
[231]
UP TO CHASSIS
024 017868
044 040252
 		001
